FireGuard™ Flat

FireGuard™ Flat
FireGuard™ Flat
FireGuard™ Flat
In stock, ready to ship

z1702

FireGuard™ Flat

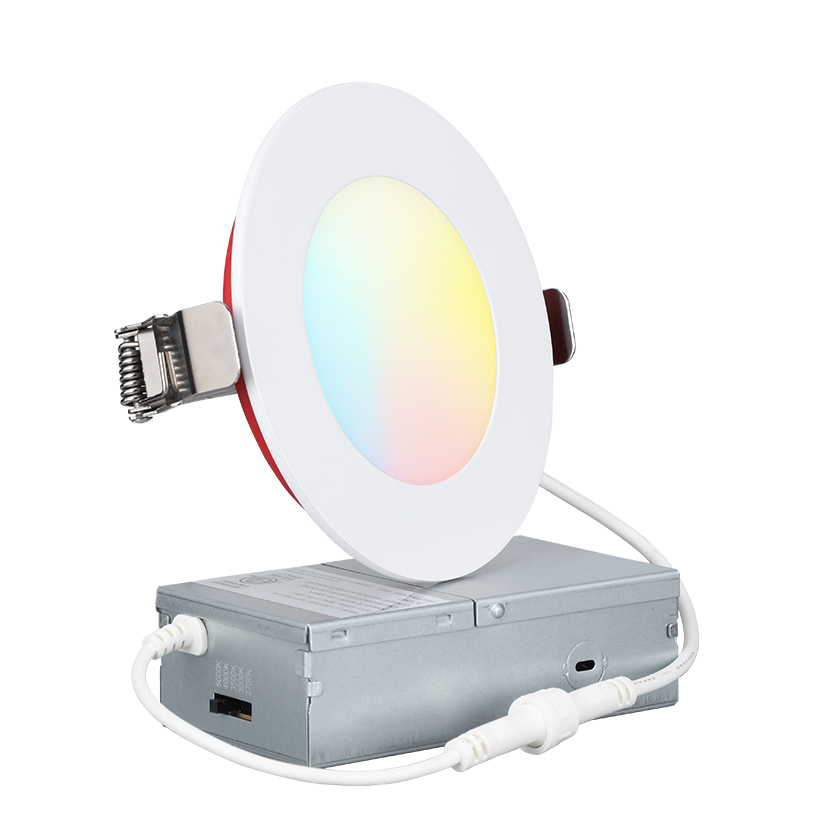

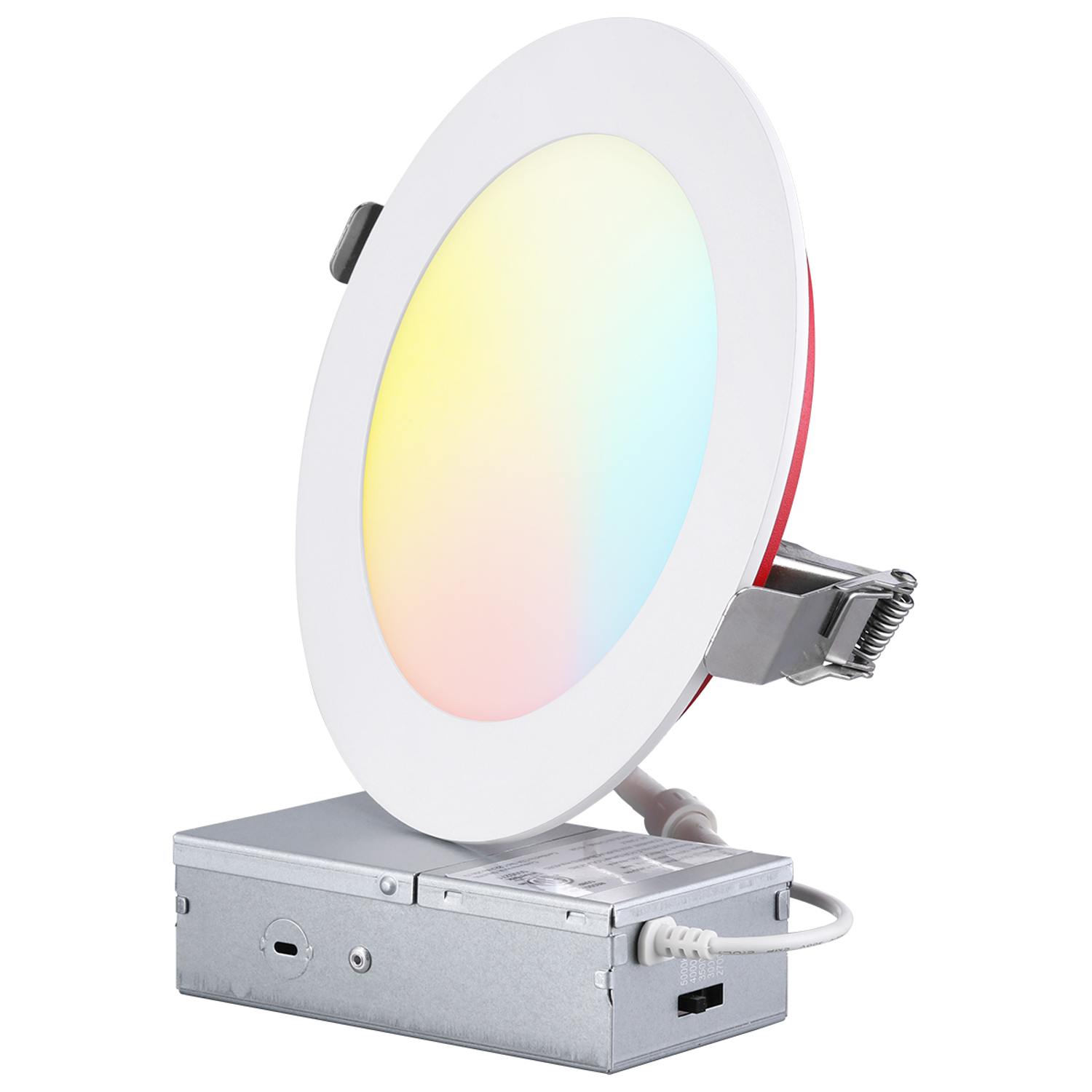

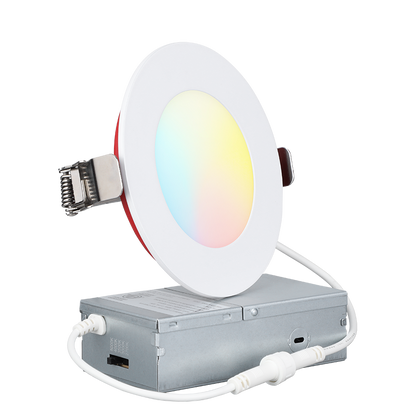

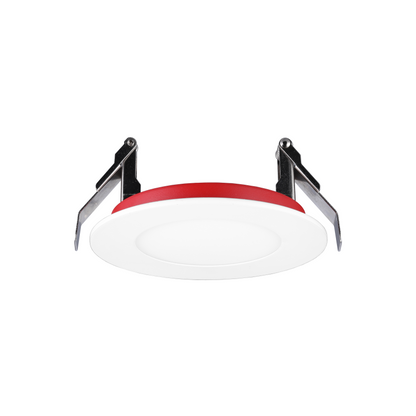

4"/6"  5CCT  Fire-Rated LED Flat Downlight

    This fire-rated LED flat downlight with J-Box withstands up to 2 hours at 1850°F, ensuring stability in high-risk environments such as hospitals, schools, and hotels. IC rated and airtight for safe insulated installations, it features quick-link heads for easy setup and durable galvanized steel construction, supporting 18W or 24W with ETL-certified reliability.

    Nominal Size
    Nominal Size: 4 in

    $49.99

    Pickup available at LeonLite Fulfillment Center

    Usually ready in 2 hours
    Finish your project
    Need advice? Consult a Lighting Expert.

    Email us
    We'll reply in 24-48 hours. sales@leonlite.com

    Call us
    Mon-Fri : 8AM-4PM 800-990-7688

    Specifications

    Lumens 650 Lumens
    Color Temperature 2700K/3000K/3500K/4000K/5000K
    CRI 90+
    Beam Angle 110 Degree
    Wattage 10W
    Voltage 120V
    Waterproof Rating Wet
    Operating Temp 5 to 104 F°
    Lifespan 50000 Hrs
    Light Source LED
    Finish White
    Material Aluminum
    Documentation

    z1702 User Manual(PDF)

    z1703 Specification Sheet(PDF)

    z1703 User Manual(PDF)

    Certifications

    • FCC Listed
    Load video:

    FireGuard™ Flat

    4"/6"  5CCT  Fire-Rated LED Flat Downlight

      This fire-rated LED flat downlight with J-Box withstands up to 2 hours at 1850°F, ensuring stability in high-risk environments such as hospitals, schools, and hotels. IC rated and airtight for safe insulated installations, it features quick-link heads for easy setup and durable galvanized steel construction, supporting 18W or 24W with ETL-certified reliability.

      FAQs

      Please read our FAQs page to find out more.

      Do I need an additional fire hood or a separate “fire-rated” light?

      No extra hood is required. This slim recessed fixture is fire-rated by design. Follow the manual—including any required sealing—to ensure the assembly performs as intended.

      What do IC Rated & Air Tight (ASTM E283) do for me?

      IC rating allows direct contact with insulation, reducing overheating risk. Air-tight construction limits drafts and dust from the plenum, improving comfort and energy efficiency.

      Does being fire-rated and ultra-thin compromise brightness or lifespan?

      No. The aluminum ring and steel backplate manage heat effectively, while CRI 90 and 5CCT preserve visual quality. It’s rated for 50,000 hours of operation.

      Is installation difficult? Anything specific to watch for?

      It installs like other slim recessed lights: cut the opening, make J-box connections, and secure the fixture. Crucially, preserve the fire-rated construction and any required sealing—avoid oversizing the cutout or damaging fire barriers. Power off and follow local code.
