Reliant™

Specifications

Lumens 700 Lumens
Color Temperature 2700K/3000K/3500K/4000K/5000K
CRI 90+
Beam Angle 110 Degree
Wattage 9W
Voltage 120-277V
Waterproof Rating IP20
Operating Temp 14 to 104 F°
Lifespan 30000 Hrs
Light Source LED
Finish White
Material Aluminum
Documentation

Certifications

  • FCC Listed

Reliant™

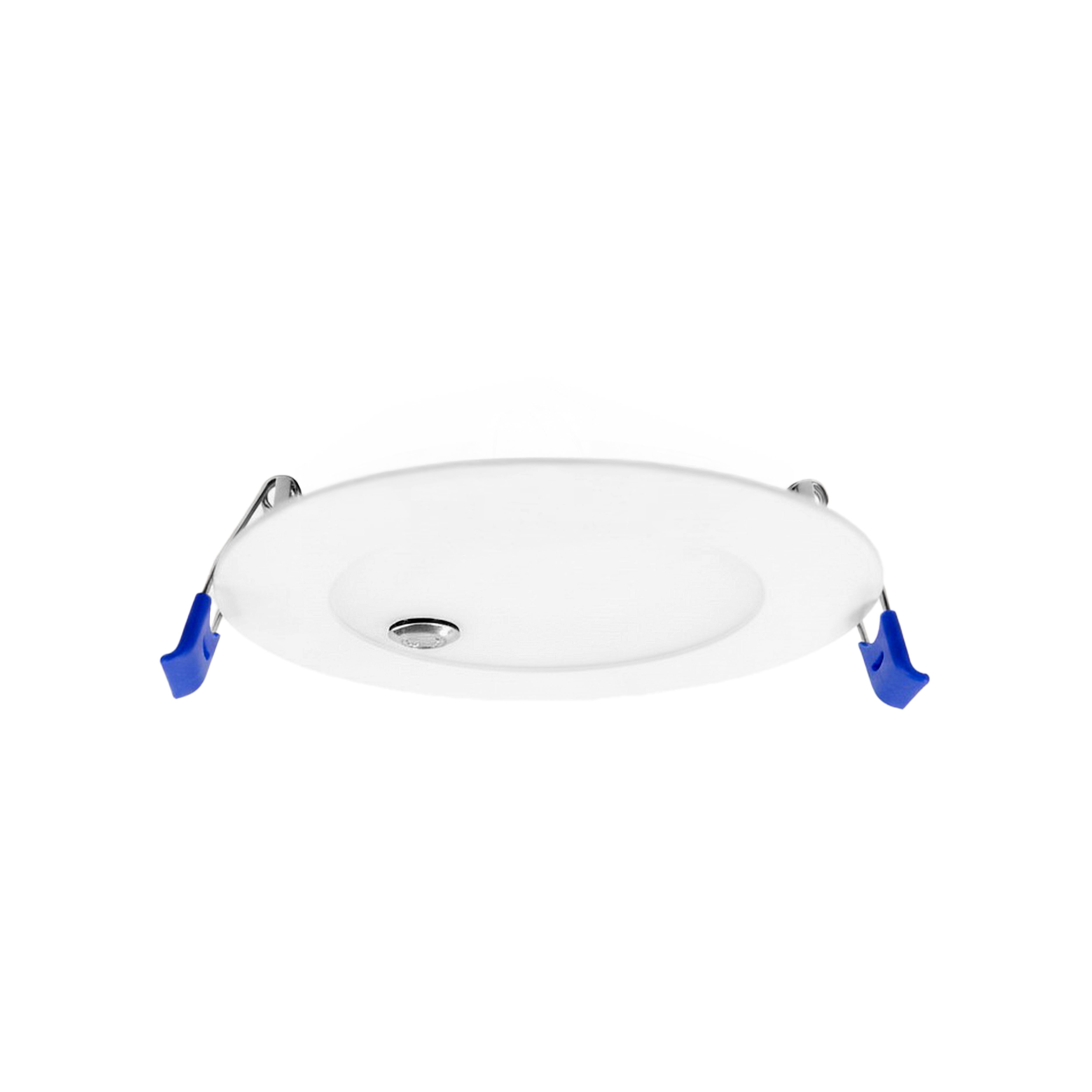

4"/6" 5CCT Emergency J-Box LED Downlight

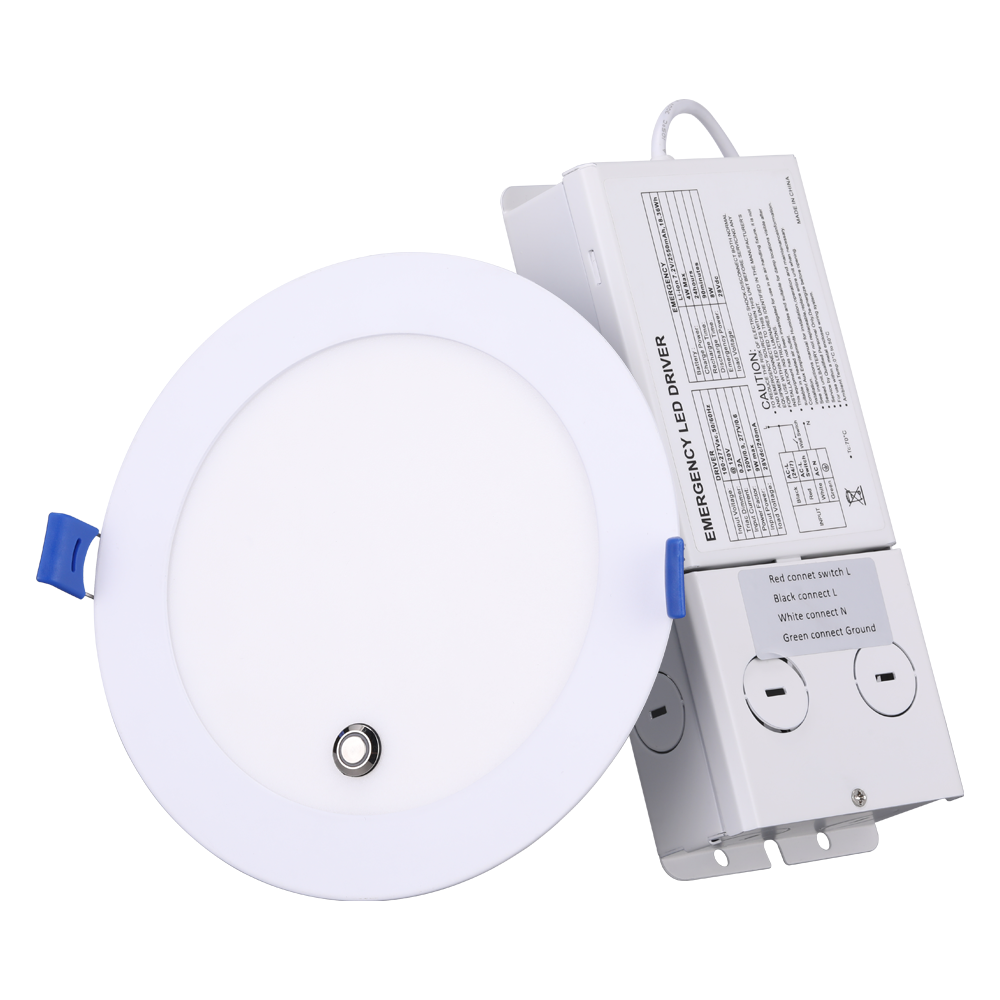

This emergency J-Box LED downlight delivers over 90 minutes of backup lighting, exceeding NFPA 101, IBC, OSHA, and UL 924 standards for safety compliance. Available in 4-inch or 6-inch models, it provides high-lumen emergency output with 5 selectable color temperatures, pre-wired installation, and a test button for easy routine checks.

FAQs

Please read our FAQs page to find out more.

Will this downlight still provide lighting during a power outage?

Yes. It’s equipped with an 8W backup battery that provides 666 lumens of emergency illumination for up to 90 minutes during an outage.

What does the test button do? How should I perform routine tests?

The exposed test button simulates a power outage so you can verify operation without disassembly, streamlining routine checks and record-keeping. Most jurisdictions require periodic function tests and a duration test (e.g., annual 90-minute). Follow your AHJ’s schedule and documentation rules.

After power is restored, do I need to recharge it manually?

No. The backup battery recharges automatically when power returns—no manual action needed. Charging and maintenance are affected by ambient temperature; follow the manual for periodic inspections to extend battery life.

Is installation complex? Do I need extra emergency components or a separate box?

It’s a pre-wired, complete solution, minimizing guesswork. Typically it ties to an unswitched feed so it automatically enters emergency mode on power loss; any switched/dimmed control for normal lighting should be wired per the manual by a qualified electrician.
