Fireguard™ Square

Fireguard™ Square
Fireguard™ Square
Fireguard™ Square

Product Highlights

4"/6"

Size

120V

Voltage

5CCT

CCT

12W

Wattage

15W

Wattage

800+

Lumens

50,000hrs

Warranty

3 years

Warranty

1000+

Lumens
In stock, ready to ship

z1960

Fireguard™ Square

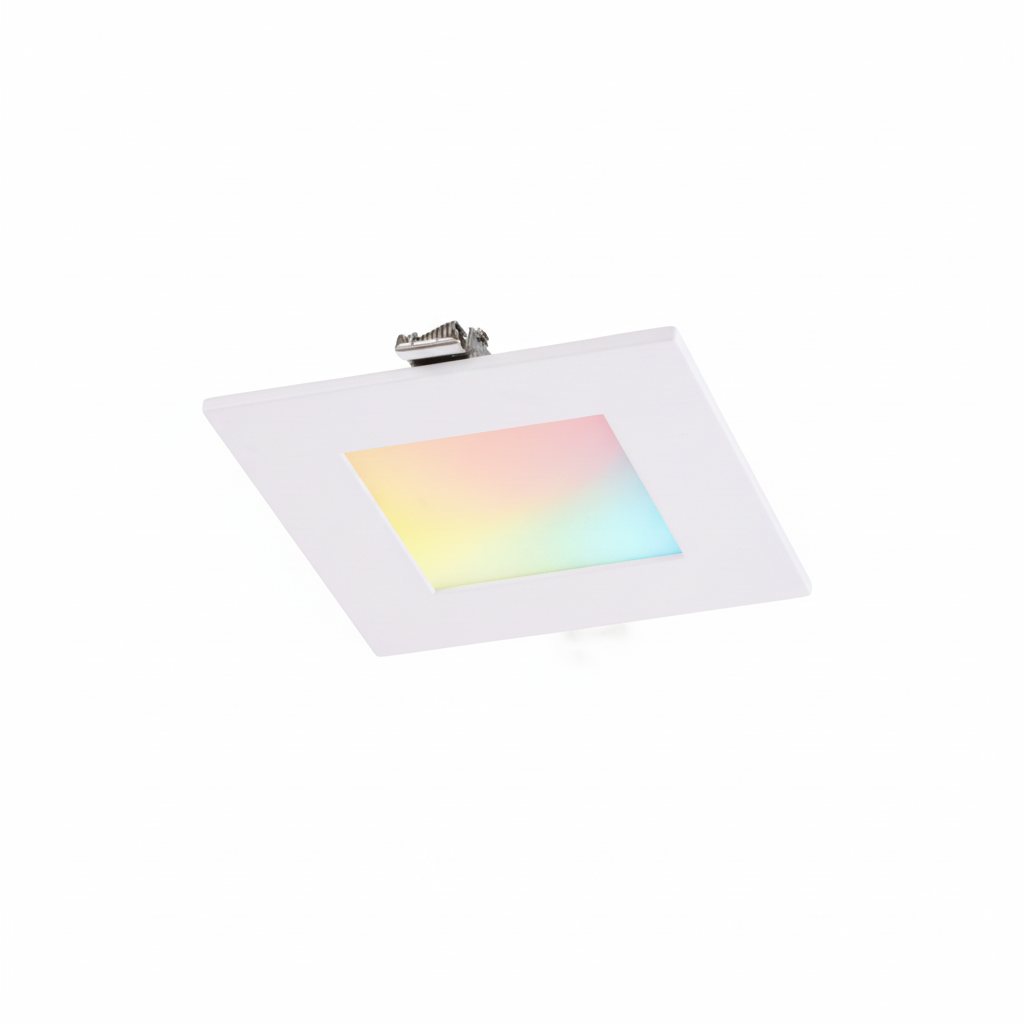

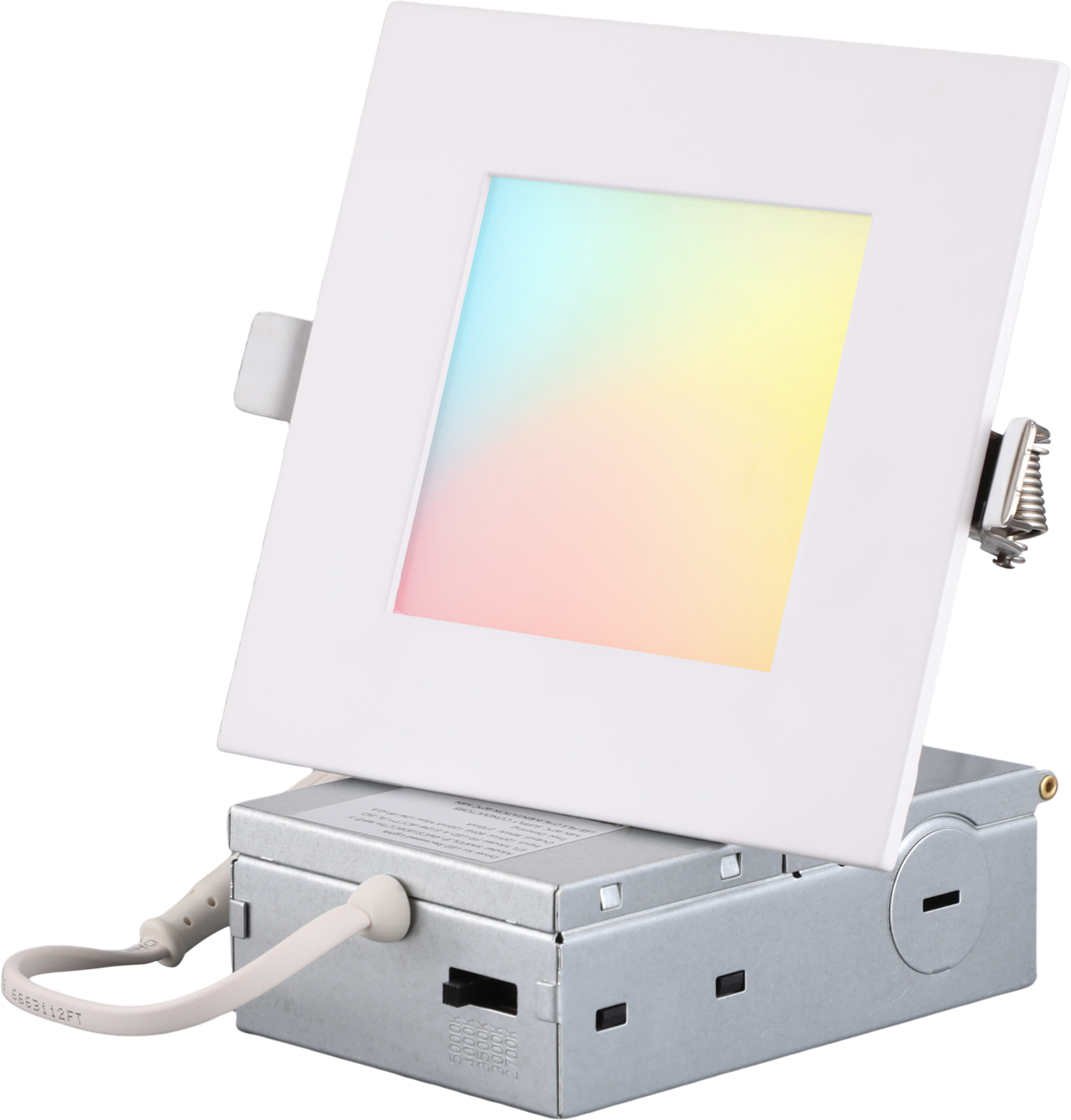

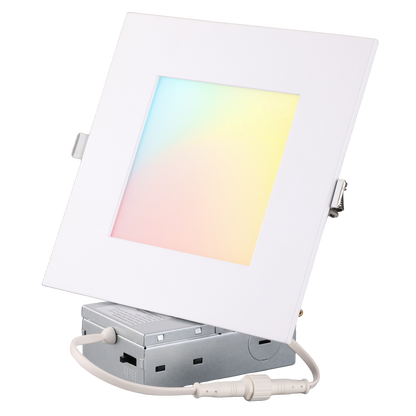

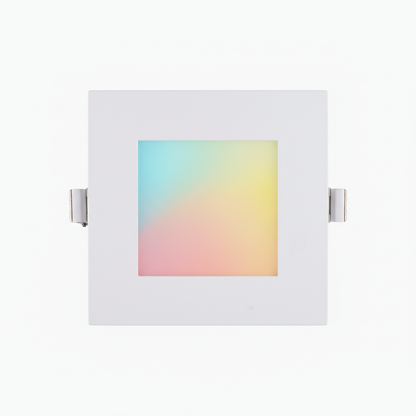

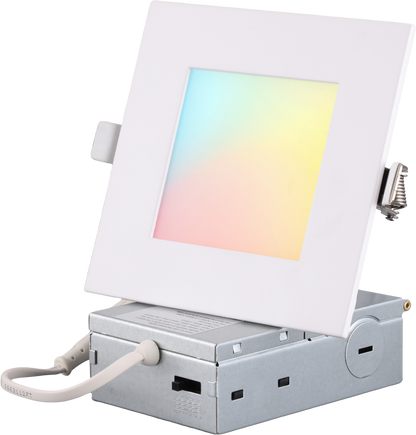

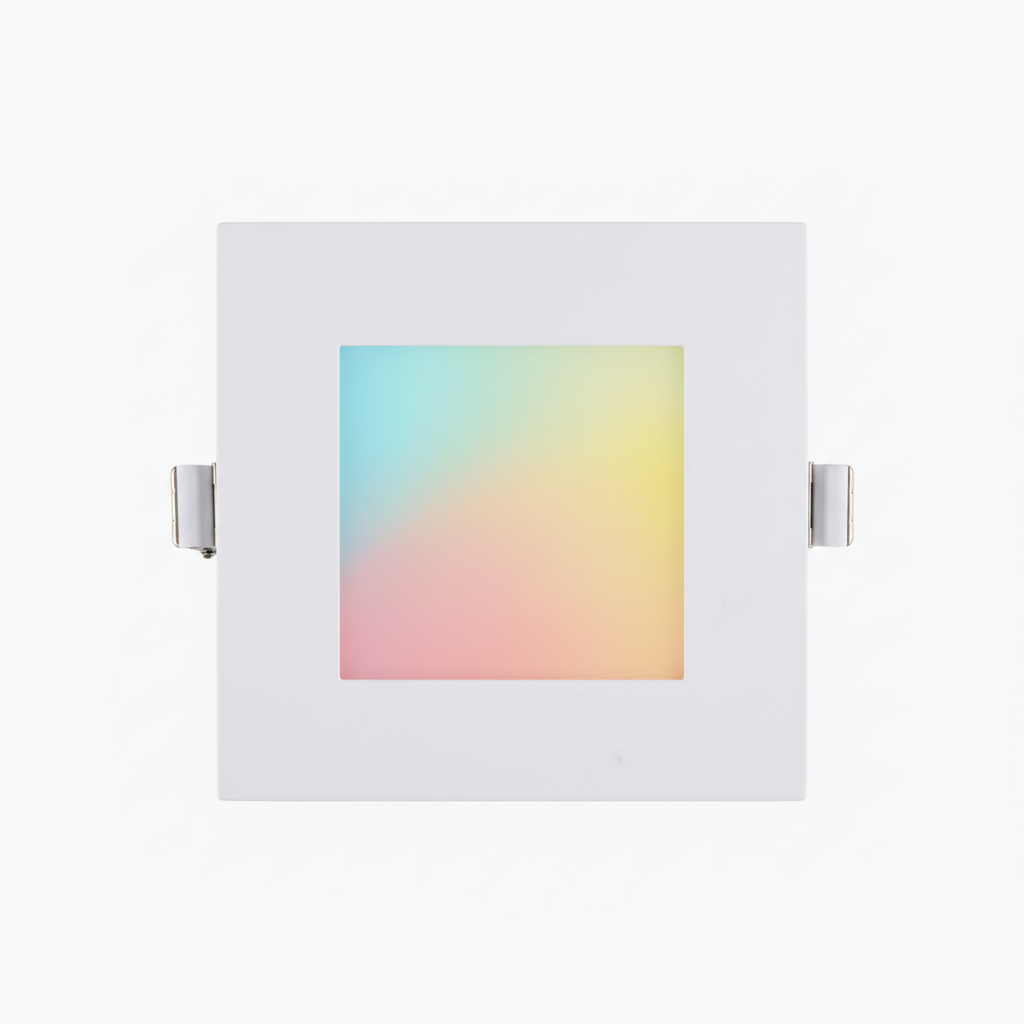

FireGuard™ Square 2-Hour Fire-Rated Architectural LED Downlight

This square recessed downlight brings a refined architectural edge that complements modern interiors while simplifying installation with an all-in-one design. Built with a 2-hour fire-rated structure for maximum ceiling protection, it ensures both safety and aesthetic harmony in residential and commercial spaces.

$49.99
Shipping calculated at checkout.
Nominal Size
Nominal Size: 4 in
Need advice? Consult a Lighting Expert.

Email us
We'll reply in 24-48 hours. sales@leonlite.com

Call us
Mon-Fri : 8AM-4PM 800-990-7688

Text us
For Sales and Quote. 949 279-7251

Product Highlights

4"/6"

Size

120V

Voltage

5CCT

CCT

12W

Wattage

15W

Wattage

800+

Lumens

50,000hrs

Warranty

3 years

Warranty

1000+

Lumens

Specifications

Lumens 800 Lumens
Color Temperature 2700K/3000K/3500K/4000K/5000K
CRI 90+
Beam Angle 120 Degree
Wattage 12W
Voltage 120V
Waterproof Rating Wet
Operating Temp -4–104°F
Lifespan 50000 Hrs
Light Source LED
Finish White
Material Aluminum
Documentation

User Manual(PDF)

Certifications

  • FCC Listed

Fireguard™ Square

FireGuard™ Square 2-Hour Fire-Rated Architectural LED Downlight

This square recessed downlight brings a refined architectural edge that complements modern interiors while simplifying installation with an all-in-one design. Built with a 2-hour fire-rated structure for maximum ceiling protection, it ensures both safety and aesthetic harmony in residential and commercial spaces.

FAQs

Please read our FAQs page to find out more.

Which fire tests and building-energy programs does it meet?

UL 263, ASTM E119, CAN/ULC-S101 (2-hour), Title 24 JA8, ENERGY STAR, ETL, FCC. It’s IC-rated, Airtight, and Wet-location.

Is it safe with insulation or spray foam?

Yes. It’s IC-rated & airtight so direct contact with insulation is allowed. For spray foam, follow foam maker guidance and code; don’t block required J-box access.

Can I daisy-chain multiple lights?

This model’s maximum connection is 1 pc (stand-alone). If you need multi-light runs, plan branch circuits accordingly and follow code.

Is it suitable for retrofit and new construction?

Yes. Its canless, low-profile body and spring clips simplify retrofit; the metal J-box and FT6 wiring suit new-construction rough-in.

Didn’t find your answer?

Don't hestitate to contact us
