FireGuard™ Shield

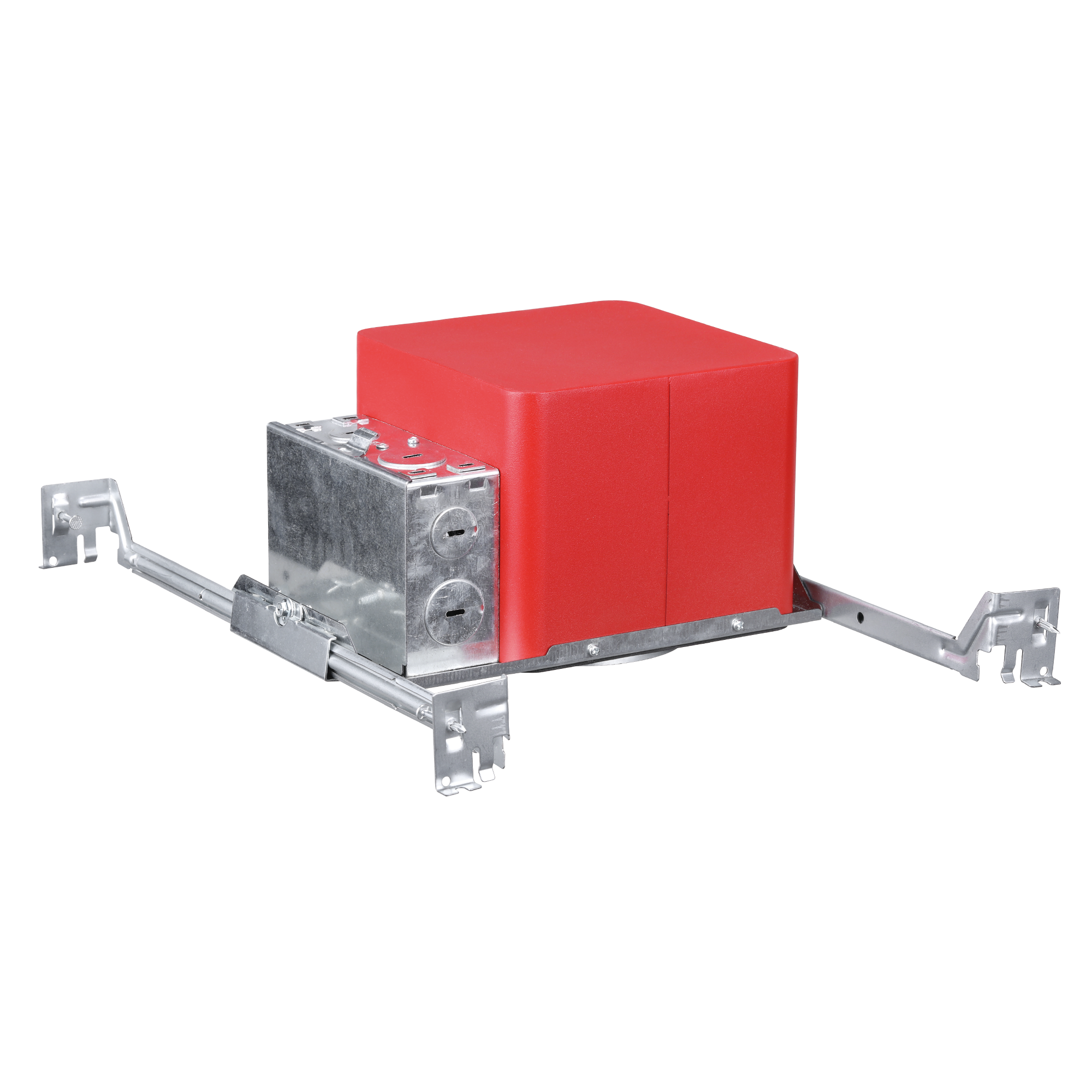

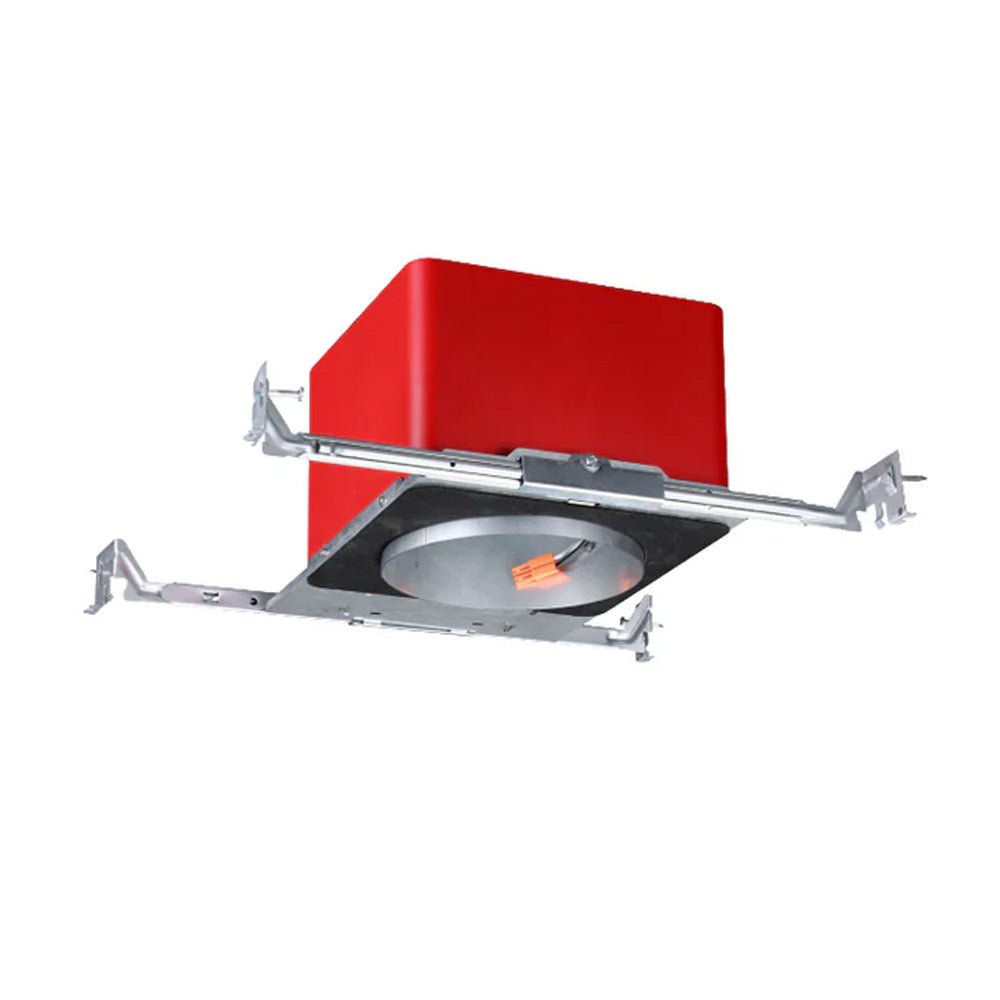

4"/6" TP24 New Construction Fire-Rated Recessed Housing

This fire-rated LED recessed housing withstands 2 hours at 1850°F, making it ideal for high-safety environments such as hospitals, schools, and hotels. Featuring TP24 quick-link heads for fast installation, it is IC rated, airtight, and built from durable galvanized steel, with ETL certification for reliable performance.

$49.99
Shipping calculated at checkout.
Nominal Size
Nominal Size: 4 in
Need advice? Consult a Lighting Expert.

Email us
We'll reply in 24-48 hours. sales@leonlite.com

Call us
Mon-Fri : 8AM-4PM 800-990-7688

Text us
For Sales and Quote. 949 279-7251

Pickup available at LeonLite Fulfillment Center

Usually ready in 2 hours

Product Highlights

4"/6"

Size

120V

Voltage

5 years

Warranty

Specifications

Lumens /
Color Temperature /
CRI /
Beam Angle /
Wattage 18W
Voltage 120V
Waterproof Rating /
Operating Temp 1850 F°
Lifespan /
Light Source LED
Finish Red
Material Galvanized Steel
Documentation

z1628 Specification Sheet(PDF)

z1628 User Manual(PDF)

z1629 Specification Sheet(PDF)

z1629 User Manual(PDF)

Certifications

FireGuard™ Shield

4"/6" TP24 New Construction Fire-Rated Recessed Housing

This fire-rated LED recessed housing withstands 2 hours at 1850°F, making it ideal for high-safety environments such as hospitals, schools, and hotels. Featuring TP24 quick-link heads for fast installation, it is IC rated, airtight, and built from durable galvanized steel, with ETL certification for reliable performance.

FAQs

Please read our FAQs page to find out more.

Do I need an additional “fire-rated light” or separate fire hood?

No. This housing is fire-rated by design, so you don’t need a separate fire hood. Use the provided TP24 quick-link and follow the install/ sealing instructions (if required) so the assembly performs as intended.

What do IC Rated & Air Tight (ASTM E283) do for insulation and energy efficiency?

IC rating allows direct contact with insulation for safety. Air-tight construction limits air exchange and dust from the plenum, cutting drafts and supporting energy efficiency.

Is installation complicated? Do I need fire-caulk or extra fire-stopping?

The steps mirror standard housings: set hanger → make connections → board & cutout → fit trim/module. Fire-stopping or sealant use depends on local code/AHJ. Follow the manual and any required caulking for penetrations and gaps.

What does the 2-hour UL 263 fire rating actually mean?

UL 263 means the housing/cover resists fire exposure for 2 hours (up to ~1850°F). It’s intended to help maintain the fire rating of a properly designed ceiling assembly.
