FireGuard™ Gimbal

FireGuard™ Gimbal
FireGuard™ Gimbal

Product Highlights

3"/4"

Size

120V

Voltage

5CCT

CCT

9W

Wattage

700+

Lumens

3 years

Warranty

50,000hrs

Warranty
In stock, ready to ship

z1958

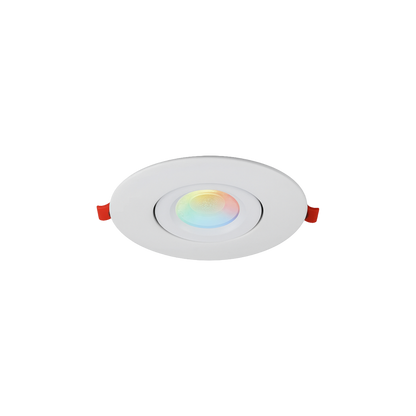

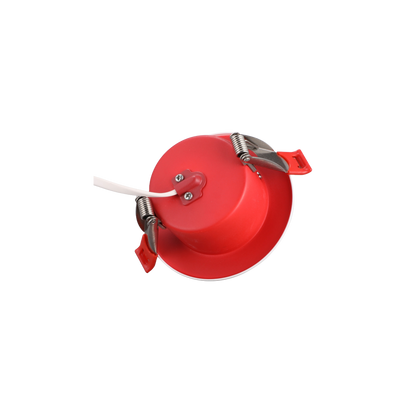

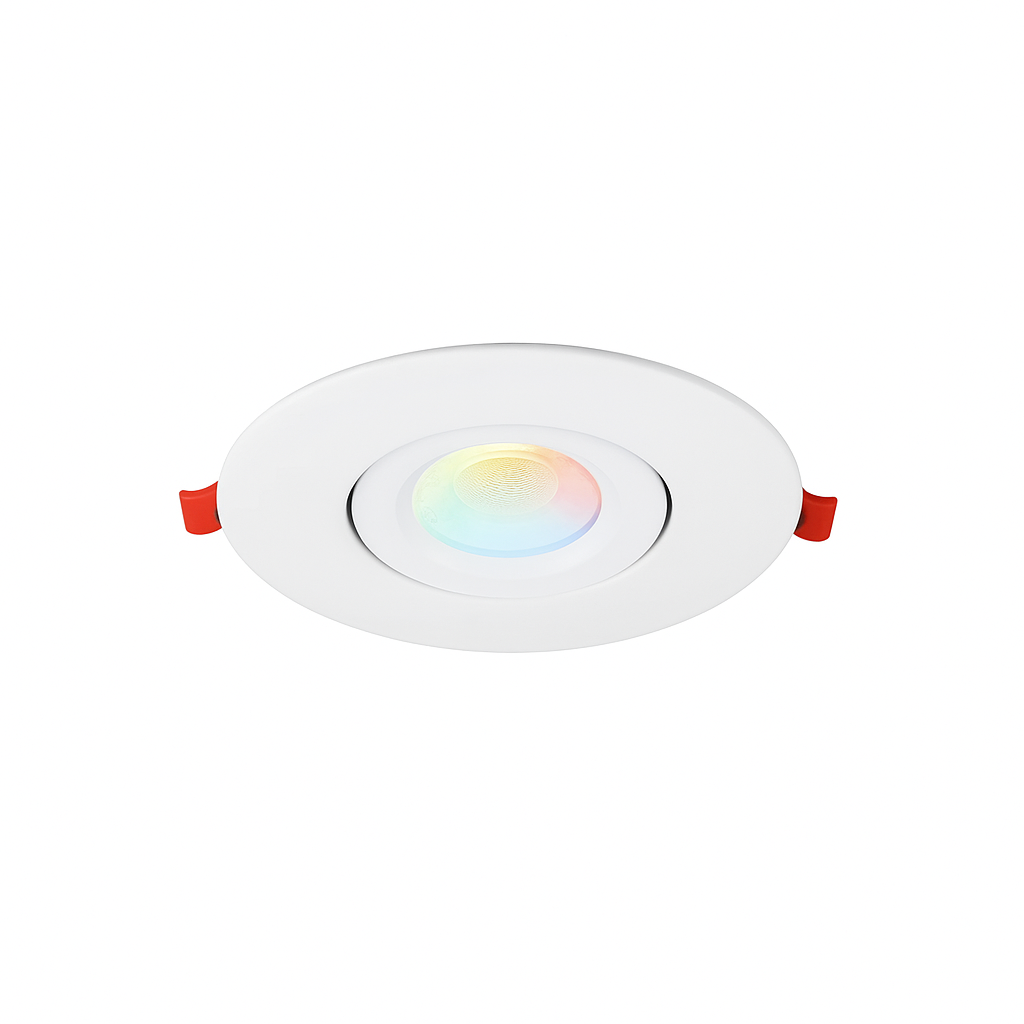

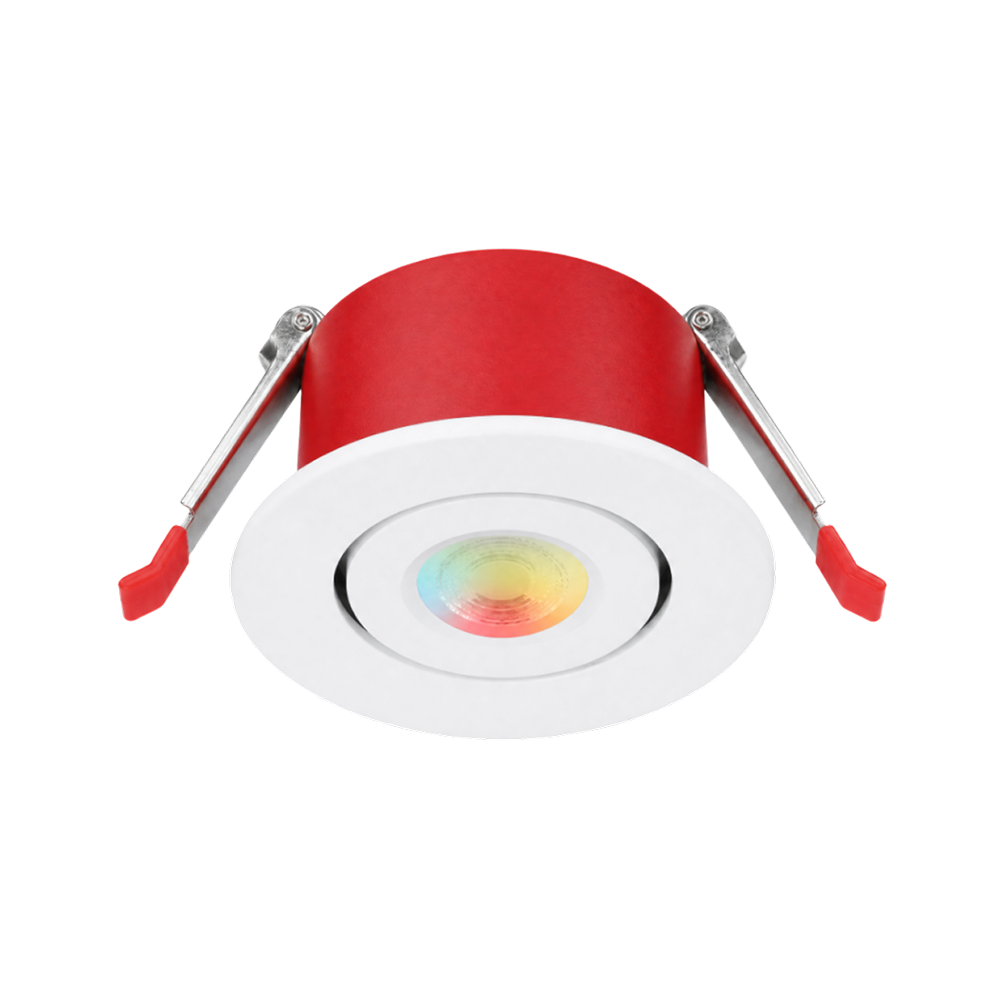

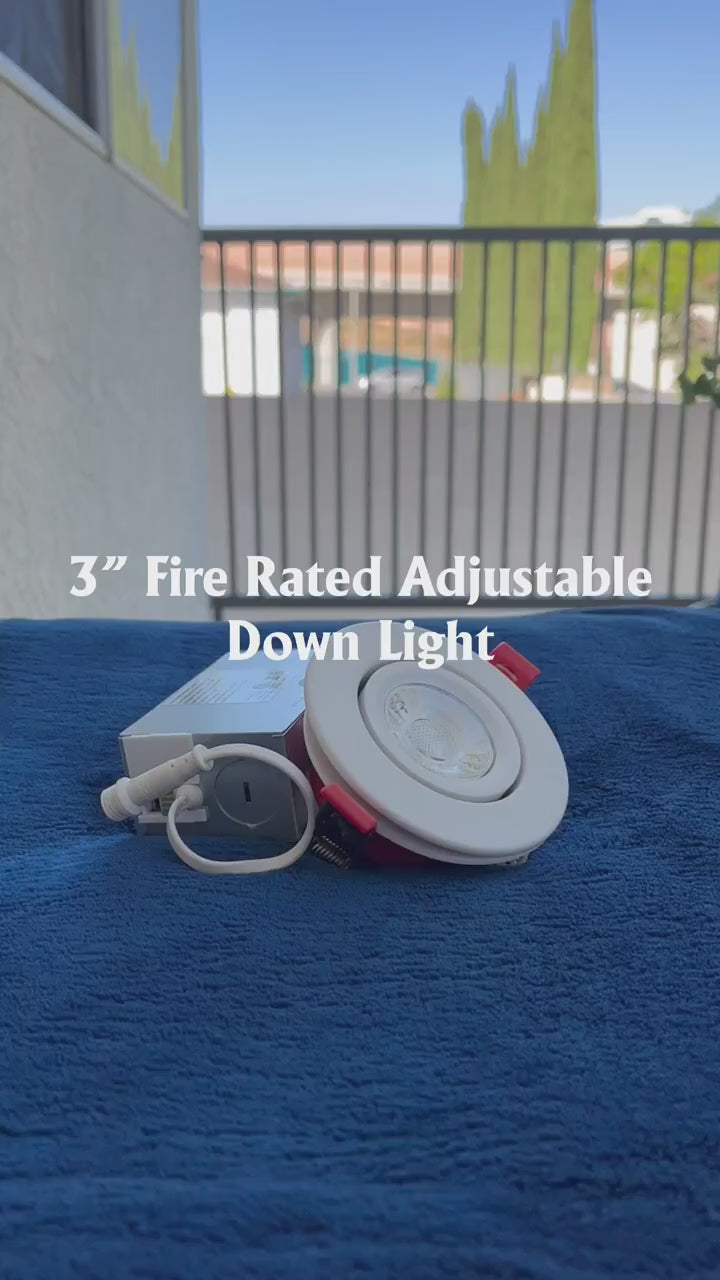

FireGuard™ Gimbal

Adjustable, fire-rated illumination with precision control and lasting performance. Featuring 120V compatibility, 5CCT color tuning, and a 9W output producing 700+ lumens, With 3" and 4" options and a 3-year warranty.

$49.99
Shipping calculated at checkout.
Size
Size: 3 inch
Finish your project
Need advice? Consult a Lighting Expert.

Email us
We'll reply in 24-48 hours. sales@leonlite.com

Call us
Mon-Fri : 8AM-4PM 800-990-7688

Pickup available at LeonLite Fulfillment Center

Usually ready in 2 hours

Product Highlights

3"/4"

Size

120V

Voltage

5CCT

CCT

9W

Wattage

700+

Lumens

3 years

Warranty

50,000hrs

Warranty

Specifications

Lumens 500 Lumens
Color Temperature 2700K/3000K/3500K/4000K/5000K
CRI 90+
Beam Angle 38 Degree
Wattage 7 W
Voltage 120 V
Waterproof Rating Wet
Operating Temp -4°F–104°F
Lifespan 50000 Hrs
Light Source LED
Finish White
Material Aluminum
Documentation

User Manual(PDF)

Certifications

  • FCC Listed

FireGuard™ Gimbal

Adjustable, fire-rated illumination with precision control and lasting performance. Featuring 120V compatibility, 5CCT color tuning, and a 9W output producing 700+ lumens, With 3" and 4" options and a 3-year warranty.

FAQs

Please read our FAQs page to find out more.

Is this fixture actually 2-hour fire rated and to which standards?

Yes. It’s tested for up to 2 hours per UL 263 / ASTM E119 / CAN/ULC-S101 and is designed for use in code-regulated, fire-rated assemblies. Always install per the tested assembly and local code.

Do I need a separate fire box or can?

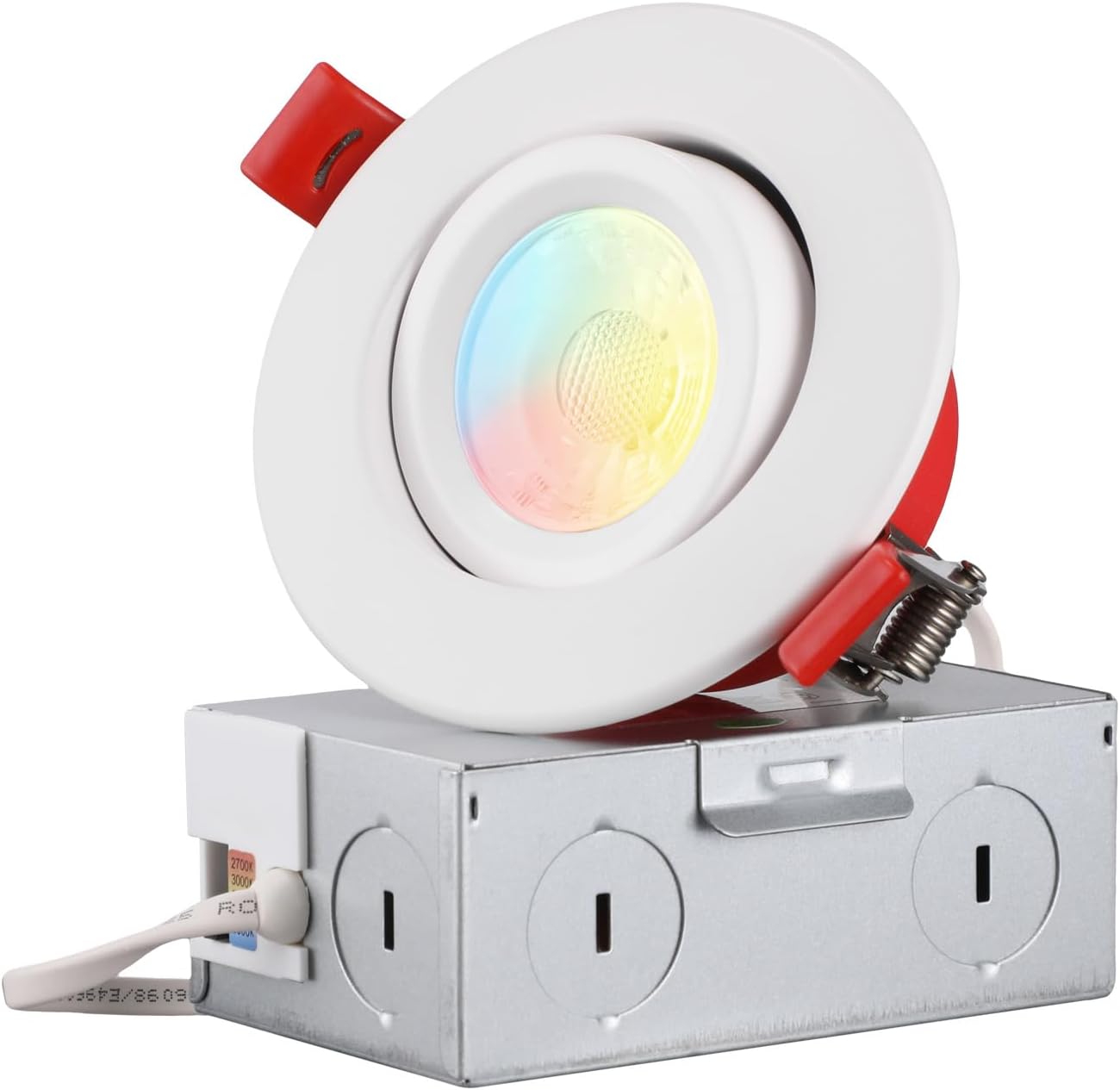

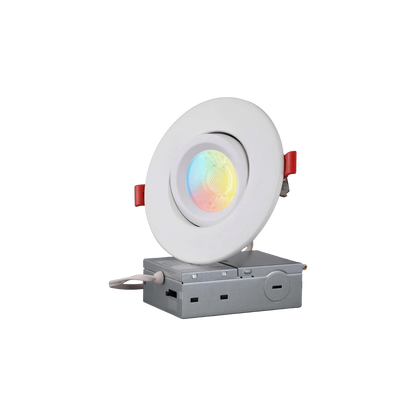

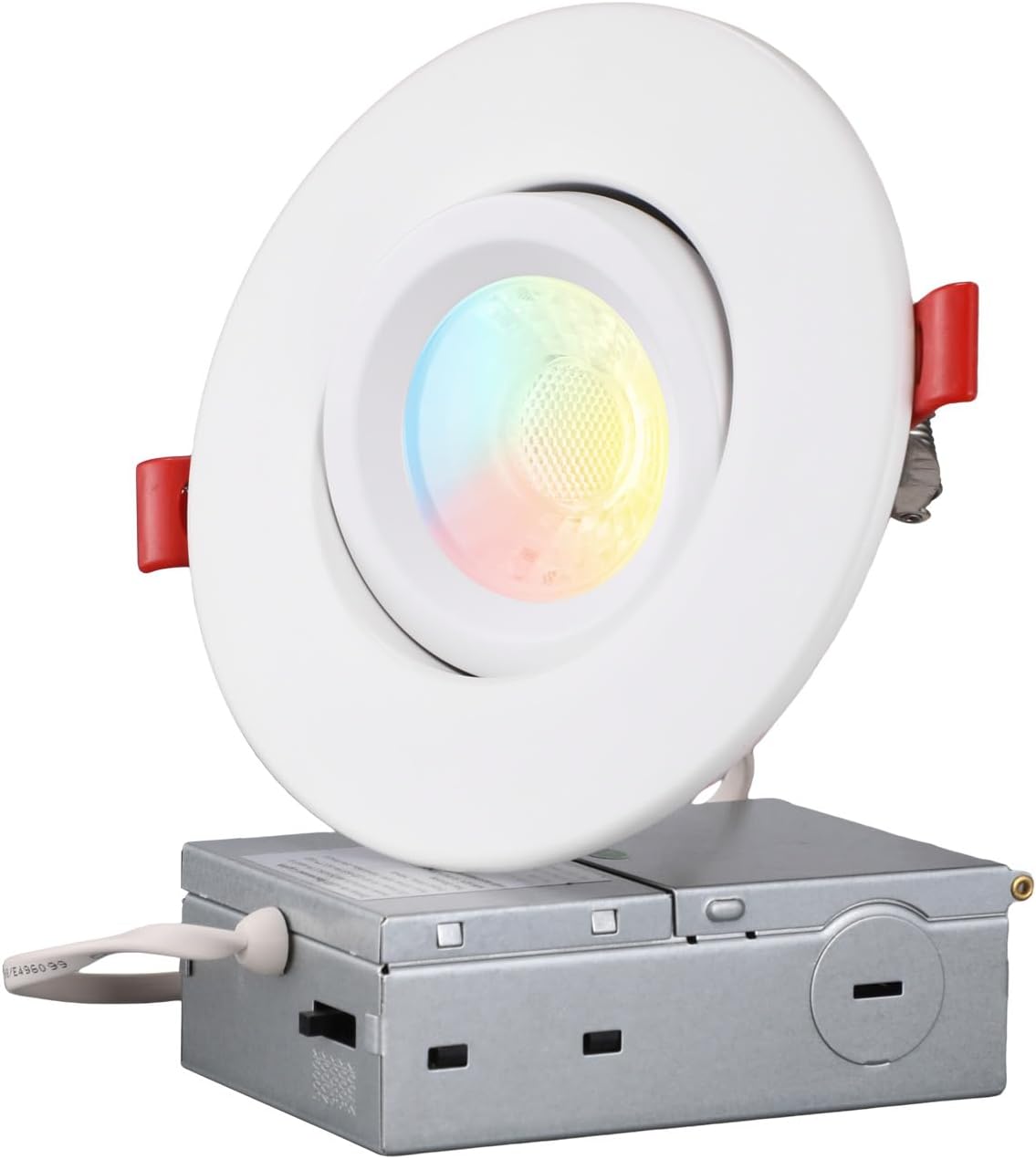

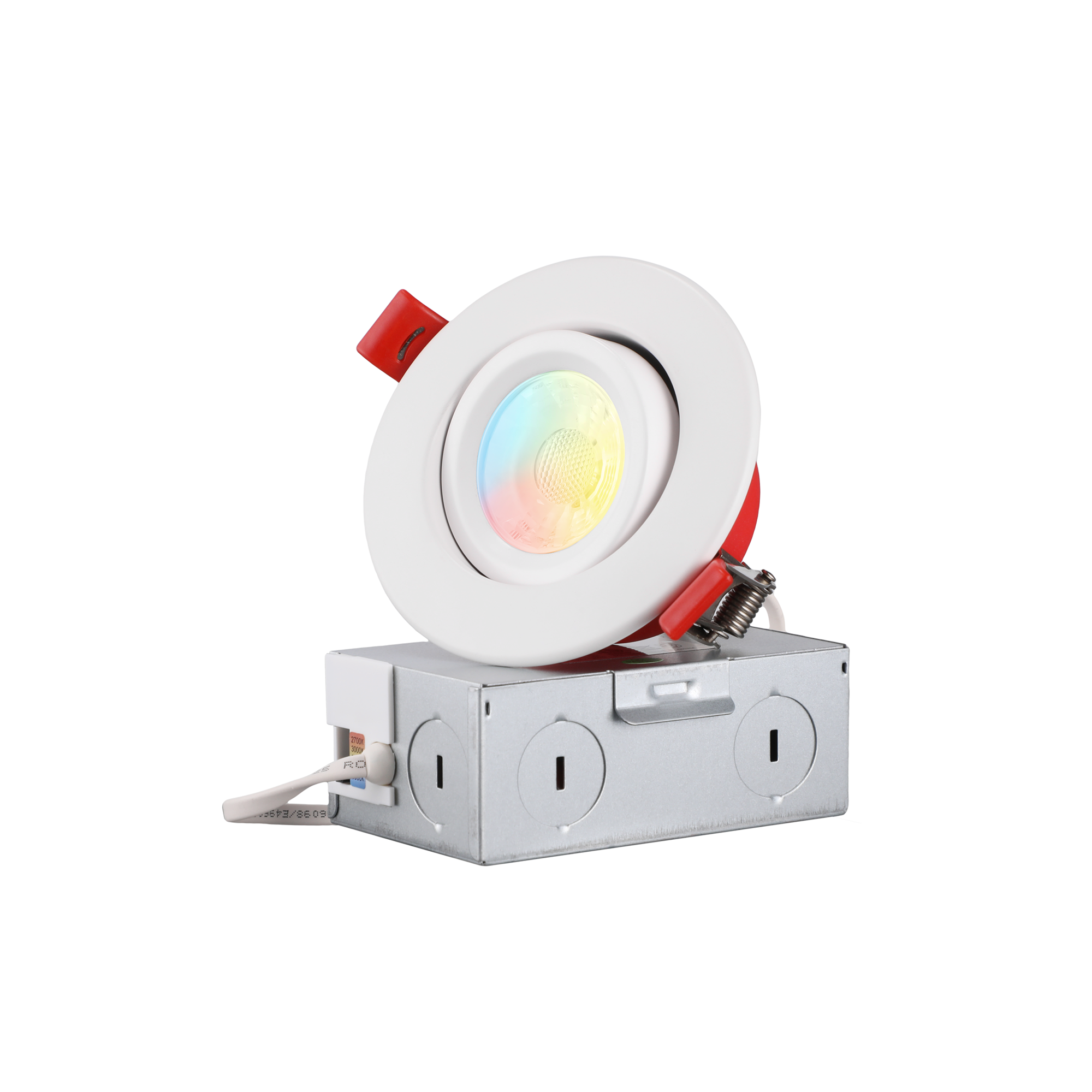

No separate can is required. This is a canless, fire-rated unit with a pre-installed metal J-box and FT6 fire-resistant wiring.

Is it IC rated and airtight? Can I bury it in insulation?

Yes, IC rated and airtight. It can be in contact with insulation and helps block air/smoke movement across the ceiling line.

Can I daisy-chain multiple fixtures from the J-box?

This unit’s “max connect” is 1 pc; treat each fixture with its own feed per code unless your layout and code allow additional splices.
