Mini-Track display case lighting system
A 14 mm magnetic track recessed into the cabinet, fed at 24V, with heads that slide, rotate and aim. It replaces the light poles standing among the goods.
- Supplied as
- A set built to your case: track cut to length, heads, corners, input and driver.
- Heads
- Aimable spot, micro spot, linear bar, strip. Any mix on one track.
- Color temperature
- To order. 3000K and 4000K most specified.
- Used in
- Jewelry, watch, card, collectible and eyewear cases; retail display shelving.
- Cabinet needs
- A 12 × 12 mm groove in a side panel, top rail or frame.
Every case has its own length and head count, so there is no list price. Add Mini-Track to your quote list and tell us the case size. A quote usually comes back within 24 hours.
Questions: sales@leonlite.com · 800-990-7688
- UL · CE · RoHSlisted
- 24V DCClass 2 · 3 A per run
- Magneticpolarity-free, tool-free
- CCT to order3000K / 4000K usual
- Dimmableon the 24V side
- 50,000 hrated life
- 3-yearwarranty

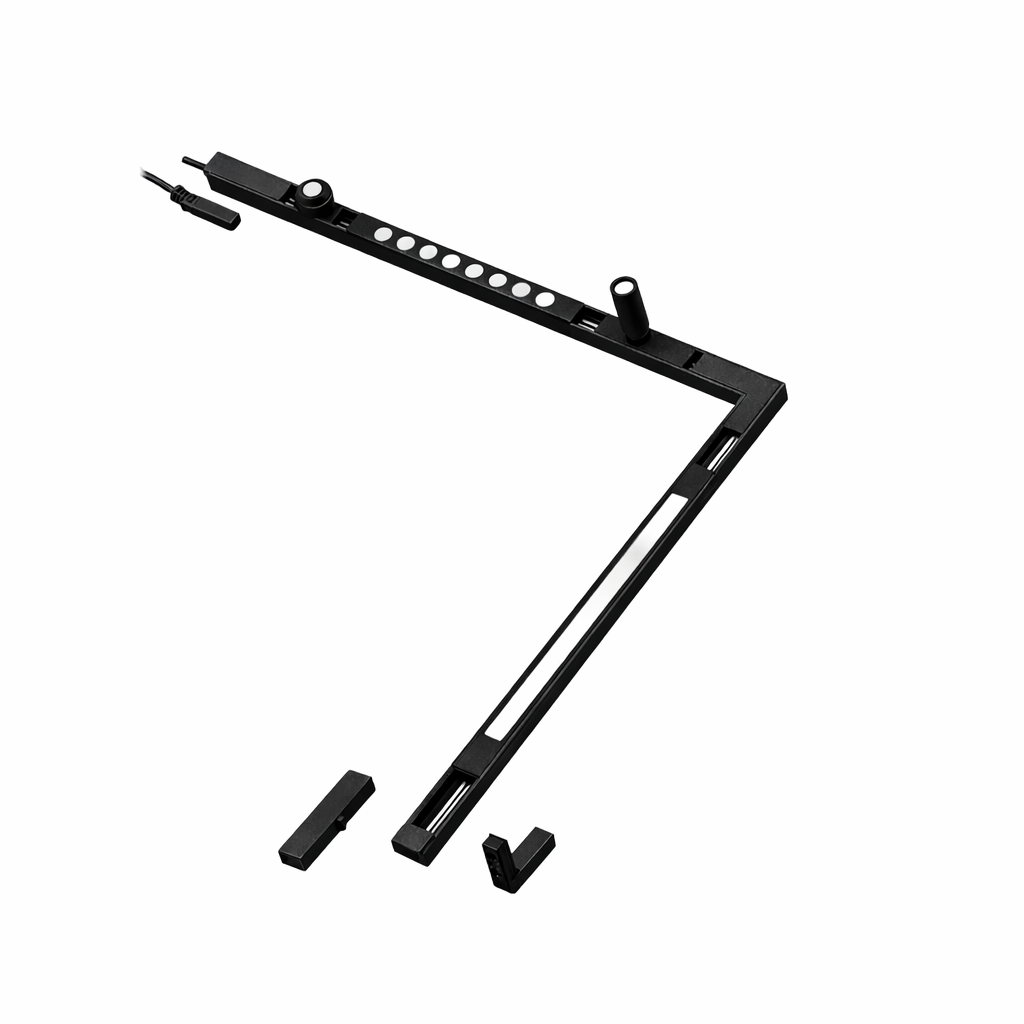

One track in the cabinet. Every light rides on it.
The track
A channel 14 mm wide sits in a 12 × 12 mm groove, flange flush with the panel. Conductors run inside it end to end, so the whole length is live at 24V.
The heads
Heads hold on magnetically and take power from the track. No polarity, no tools. Slide one along, turn it, tilt it, or swap a spot for a bar when the display changes.
The feed
One input connector per run, wired to a 24V driver outside the case. The sensor input switches the case with a hand wave. Corners and joiners carry power around the cabinet.
- 1Input connectorMT-IN
- 2Sensor inputMT-IN-S
- 3Linear spot barMT-SP-L
- 4Aimable spotMT-SP-A
- 5Flat 90° cornerMT-CR-F
- 6Recessed trackMT-TK
- 7Strip moduleMT-ST
- 8In-line joinerMT-JN
- 9End capMT-EC
- 1090° corner, adjacent faceMT-CR-V
How it is powered
Scroll sideways to see the whole path.
- 124V DC driverPower Core 36 / 60 / 96 W, or any 24V DC Class 2 supply
- 2Input connectorMT-IN · feeds the track
- 3Headsslide to any point, either way round, swap without tools
- 4Track in the top rail3 m sections cut to order, joined in line · 3 A per run
- 5End capMT-EC · closes the open end
- 6Hand-wave sensor inputMT-IN-S · wave a hand 3–8 cm from it to switch
Power. Three-conductor, no polarity. 24V DC, up to 3 A (72 W) per feed. Power Core 36 / 60 / 96 W recommended, six runs each.
Four heads, one track.
Pick by what is displayed. Change later without rewiring.
Aimable spot
Spot on a stalk. Rotates and tilts onto the piece.
Hero pieces on stands, watch cushions, graded cards and figures.
1 13/16 × 3/8 × 1 15/16 in
Micro spot
Lowest head. Fixed pool, almost flush with the track.
Ring trays, pins, coins, dice, any tray of small flat goods.
1 3/16 × 11/16 × 1 in
Linear spot bar
Eight lenses in a 4 5/8 in bar. Even coverage across a bay.
Counter showcases, eyewear, perfume, phones, rows of slabs, full bays.
4 5/8 × 9/16 × 7/16 in
Strip module
Diffused strip on the same track. No dark spots.
Shelf edges, back panels, soft fill against hard shadows.
L × 9/16 × 3/8 in
Not a boxed kit. A set built to your case.
Cabinets differ in length, corners and what they show. Each Mini-Track set is laid out first and quoted second.
- 01
Send the case
Inside dimensions, what is displayed, where the track can go. A drawing, a spreadsheet or a phone photo.
- 02
We lay it out and quote
Track lengths, head types and counts, corners, input and driver, per case. Usually within 24 hours; custom color temperature or finish takes longer.
- 03
Cut, packed per case, shipped
Track cut and labeled to the case. On site: clip in, connect, seat the heads.
One electrical spec for the whole set.
- Input
- 24V DC · any Class 2 supply · Power Core recommended
- Track
- Recessed, 14 × 12 mm (9/16 × 1/2 in) · 3 m (9.84 ft) sections, cut to order, joined in line
- Groove
- 12 × 12 mm (15/32 × 15/32 in) · 14 mm flange on the face · installation clips
- Track rating
- 3 A · 72 W per feed · three-conductor, no polarity
- Heads
- Aimable spot 1.2 W · micro spot 1 W · linear bar 7 W · strip 3.05 W / ft
- Head mounting
- Magnetic, tool-free · slide to any point · swap between types
- Color temperature
- To order per project · 3000K and 4000K most specified
- Dimming
- 24V side: dimmable driver or hand-wave controller
- Connectors
- 180° in-line · 90° flat corner · 90° onto the adjacent face
- Finish
- Titanium gray · other finishes to order
- Location
- IP20 · indoor, dry · inside closed or open display cabinets
- Listing · life · warranty
- UL · CE · RoHS · 50,000 h rated life · 3-year warranty
Before you ask for a quote.
Why is there no price on this page?
Mini-Track is not a boxed kit. Track length, head count, corners and driver change with every case, so it is quoted per project.
What do I send for a quote?
Inside dimensions of the case, what is displayed, and how many identical cases. A drawing, a spreadsheet or a phone photo is enough.
Is there a minimum order?
No. One case or a full fit-out.
Can I order track or heads on their own?
Yes. Track by the length, heads by the piece. Tell us what is already installed.
What does the cabinet need?
A 12 × 12 mm groove (15/32 in) in the side panel, top rail or frame. Track drops in, flange on the face, clips hold it. All-glass cases: top rail or corner post.
Which power supply?
Any 24V DC Class 2 supply. Power Core recommended: 36 / 60 / 96 W, six runs each. The driver sits outside the case.
How long does a quote take?
Usually within 24 hours. Custom color temperature or finish takes longer: we confirm it with the factory first.
