FireGuard™ Deep

FireGuard™ Deep
In stock, ready to ship

z1956

FireGuard™ Deep

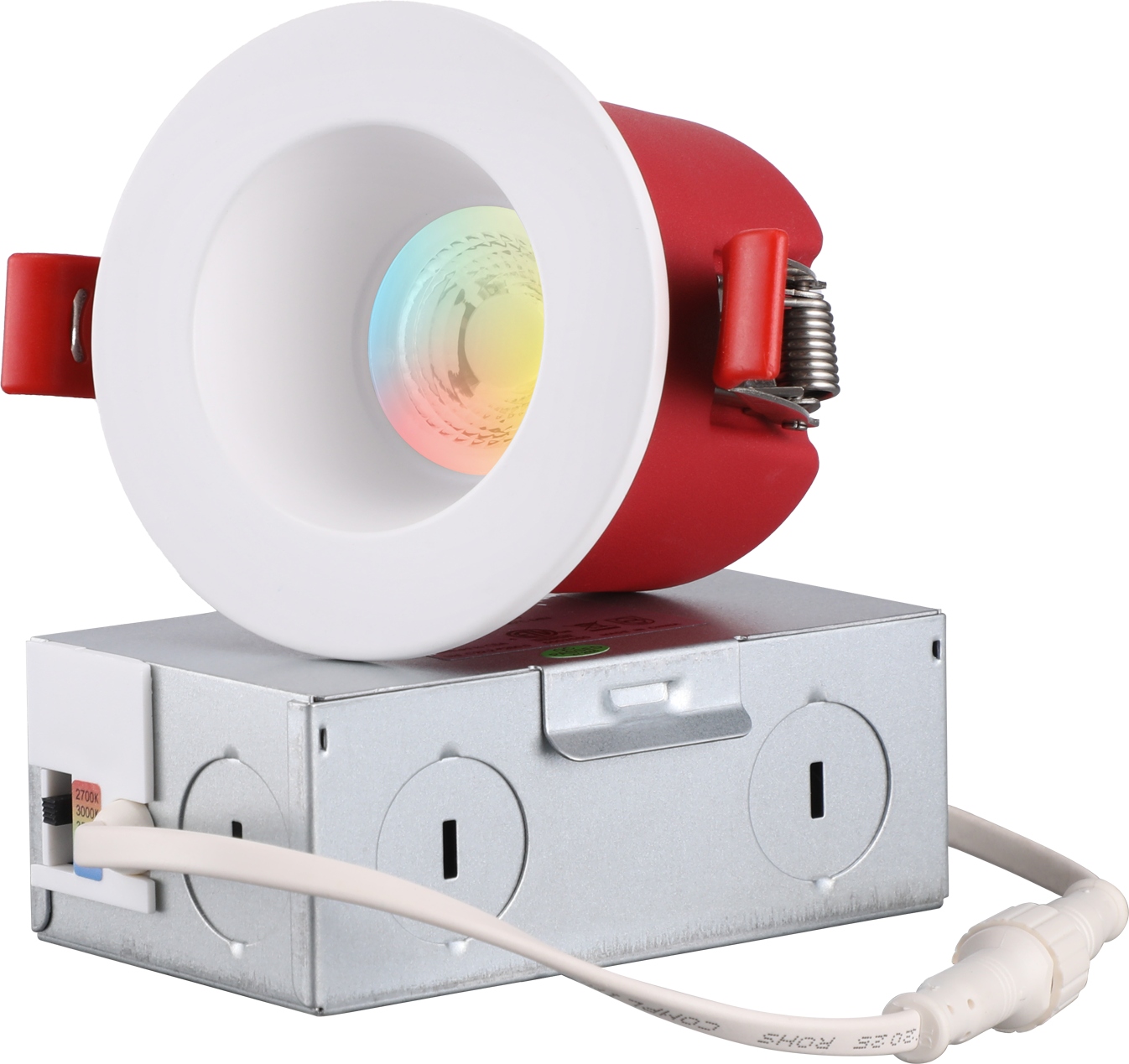

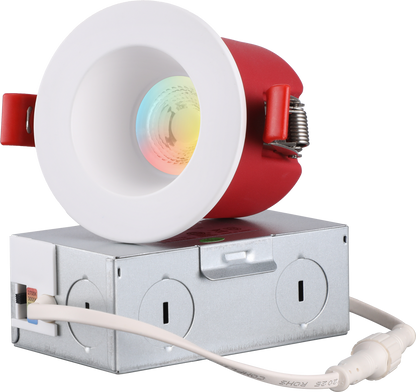

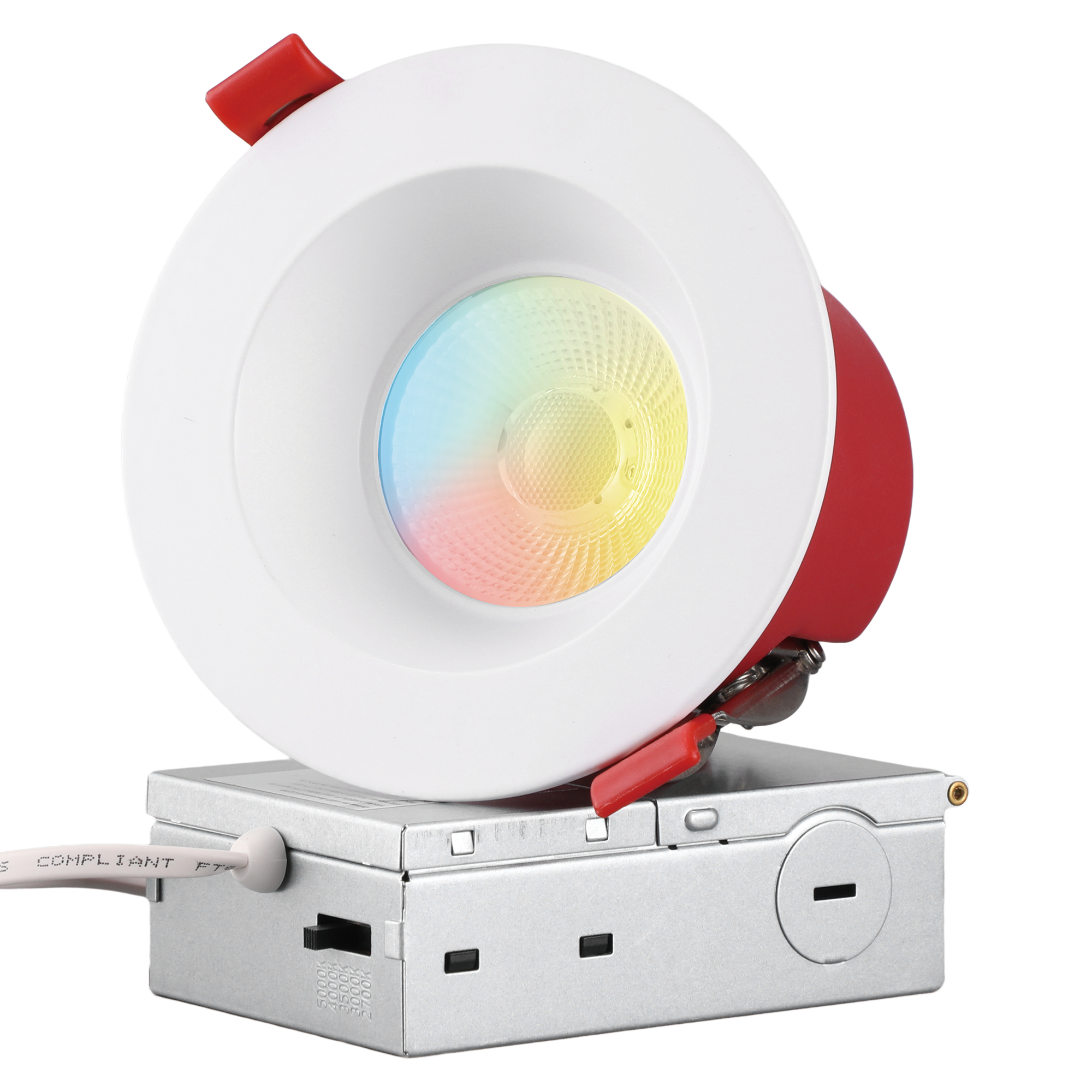

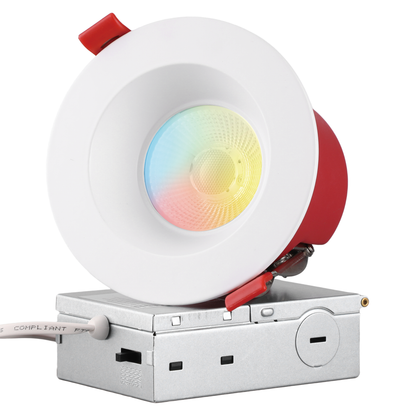

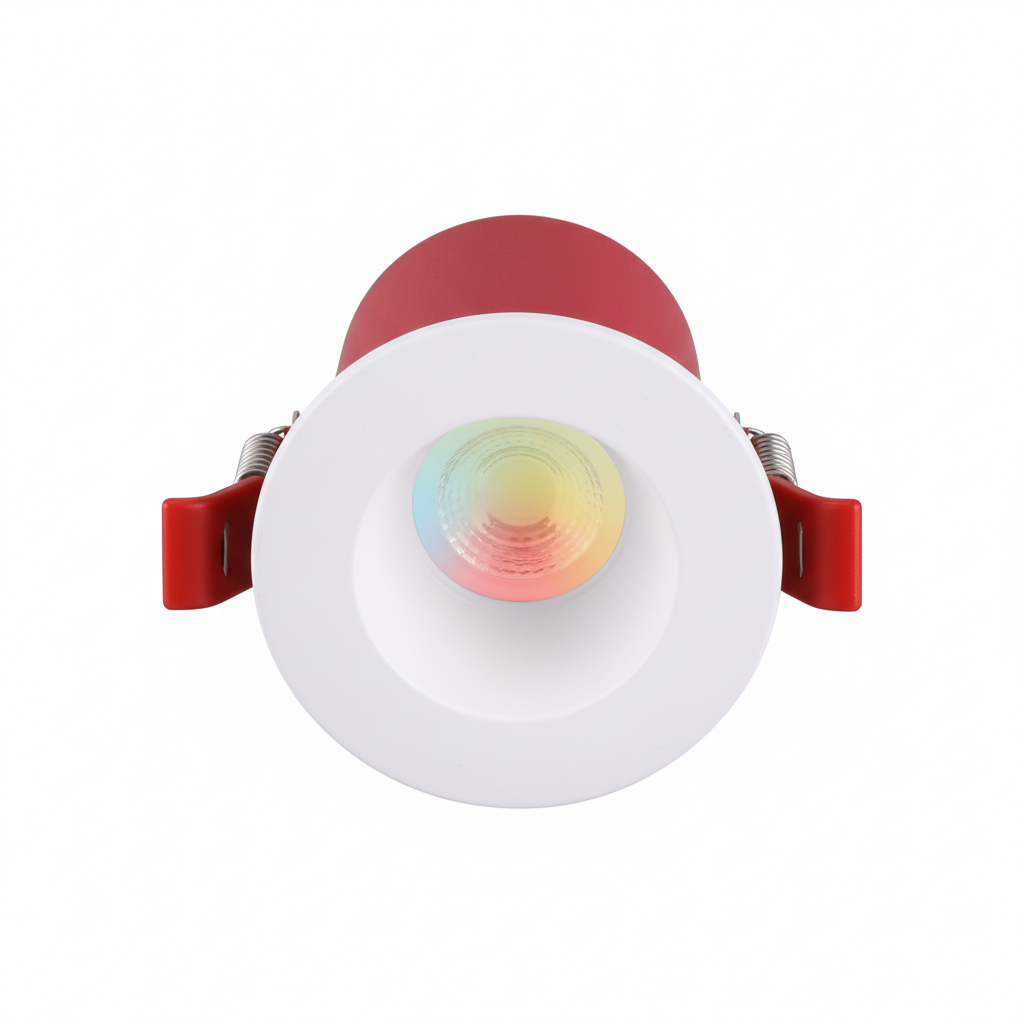

FireGuard™ Deep 2-Hour Fire-Rated Anti-Glare LED Downlight
This deep-recessed LED downlight combines a 2-hour fire-rated structure with anti-glare optics for soft, comfortable illumination ideal for inspection areas, control rooms, and precision environments.

Nominal Size
Nominal Size: 3 in

$49.99
Finish your project
Need advice? Consult a Lighting Expert.

Email us
We'll reply in 24-48 hours. sales@leonlite.com

Call us
Mon-Fri : 8AM-4PM 800-990-7688

Specifications

Lumens 600 Lumens
Color Temperature 2700K/3000K/3500K/4000K/5000K
CRI 90+
Beam Angle 38 Degree
Wattage 8W
Voltage 120V
Waterproof Rating Wet
Operating Temp -4°F~104°F
Lifespan 50000 Hrs
Light Source LED
Finish White
Material Aluminum
Documentation

User Manual(PDF)

Certifications

  • FCC Listed

FireGuard™ Deep

FireGuard™ Deep 2-Hour Fire-Rated Anti-Glare LED Downlight
This deep-recessed LED downlight combines a 2-hour fire-rated structure with anti-glare optics for soft, comfortable illumination ideal for inspection areas, control rooms, and precision environments.

FAQs

Please read our FAQs page to find out more.

Will this reduce glare for comfortable reading and relaxing?

Yes. The deep baffle design recesses the light source to cut direct view and reduce glare, delivering comfortable illumination in bedrooms, lounges, and hotel guestrooms.

What beam and spacing rules should I consider?

It’s a 38° beam accent-leaning downlight. For uniform pools, start with spacing ≈ 1.2–1.5 × mounting height (SMH) and refine via mock-ups.

Which fire tests and programs does it meet?

UL 263 / ASTM E119 / CAN/ULC-S101 (tested 2-hour), plus Title 24 JA8, ENERGY STAR, ETL, FCC.

Is it IC-rated and airtight for insulated ceilings?

Yes—IC Rated & Airtight. Direct contact with insulation is allowed; airtight helps limit smoke/heat migration across plenum paths.
