Product Highlights
WDC
2700K / 4000K Reverse Polar CCT
24V
Voltage
3 years
Warranty
SG6ILRF-SC24VH2CCT
Model No. SG6ILRF-SC24VH2CCT
The Xaact Recessed Mod is a 24V cut-to-length recessed channel that finishes flush, leaving no hardware on the elevation. Linear and 90° couplers carry a run across a joint or around a corner as one continuous lit line.

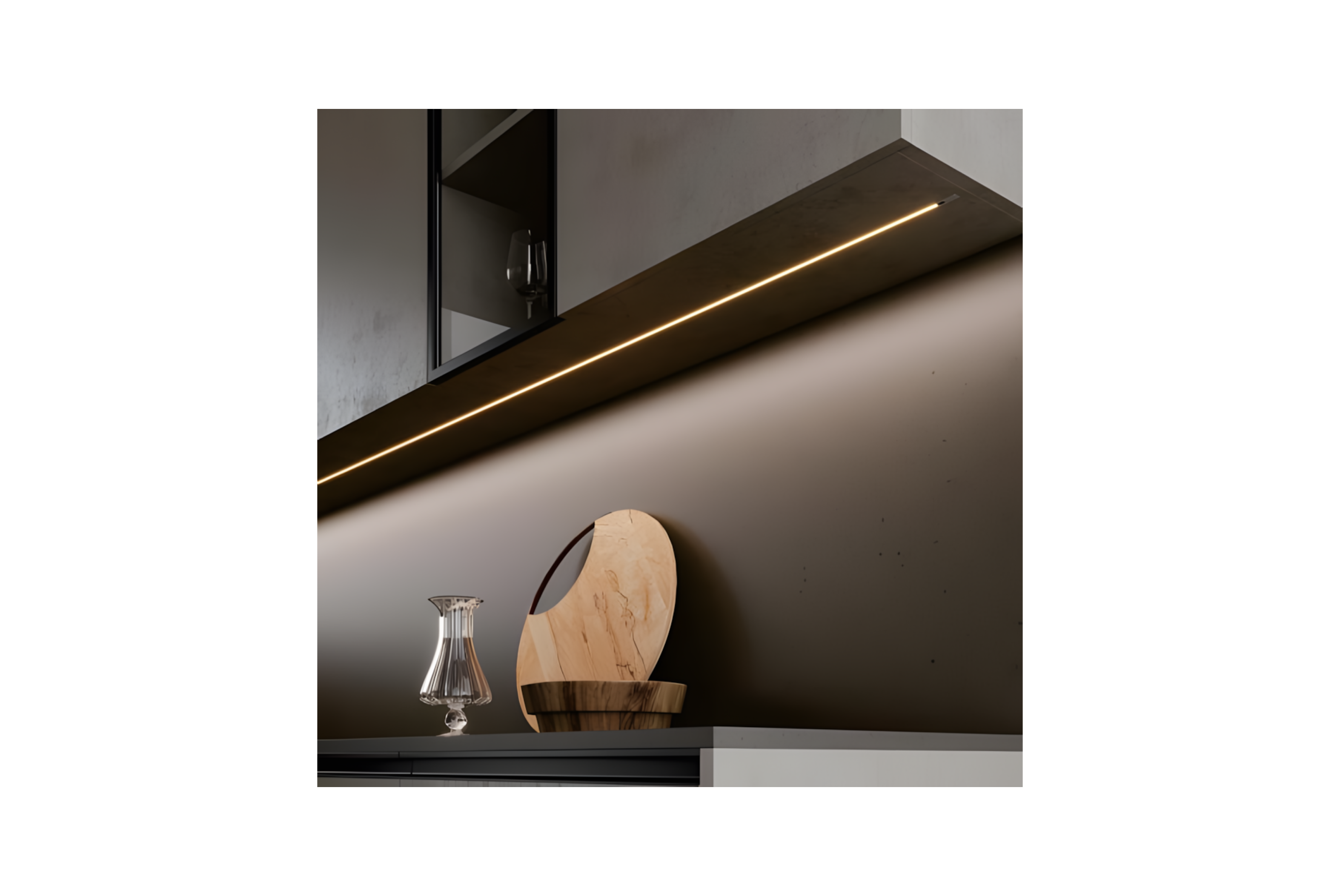

- Application: Flush millwork and casework where no fixture should be visible
- Cut anywhere: Field-cuttable at any point — no fixed cut increment, so an opening is lit to its actual dimension

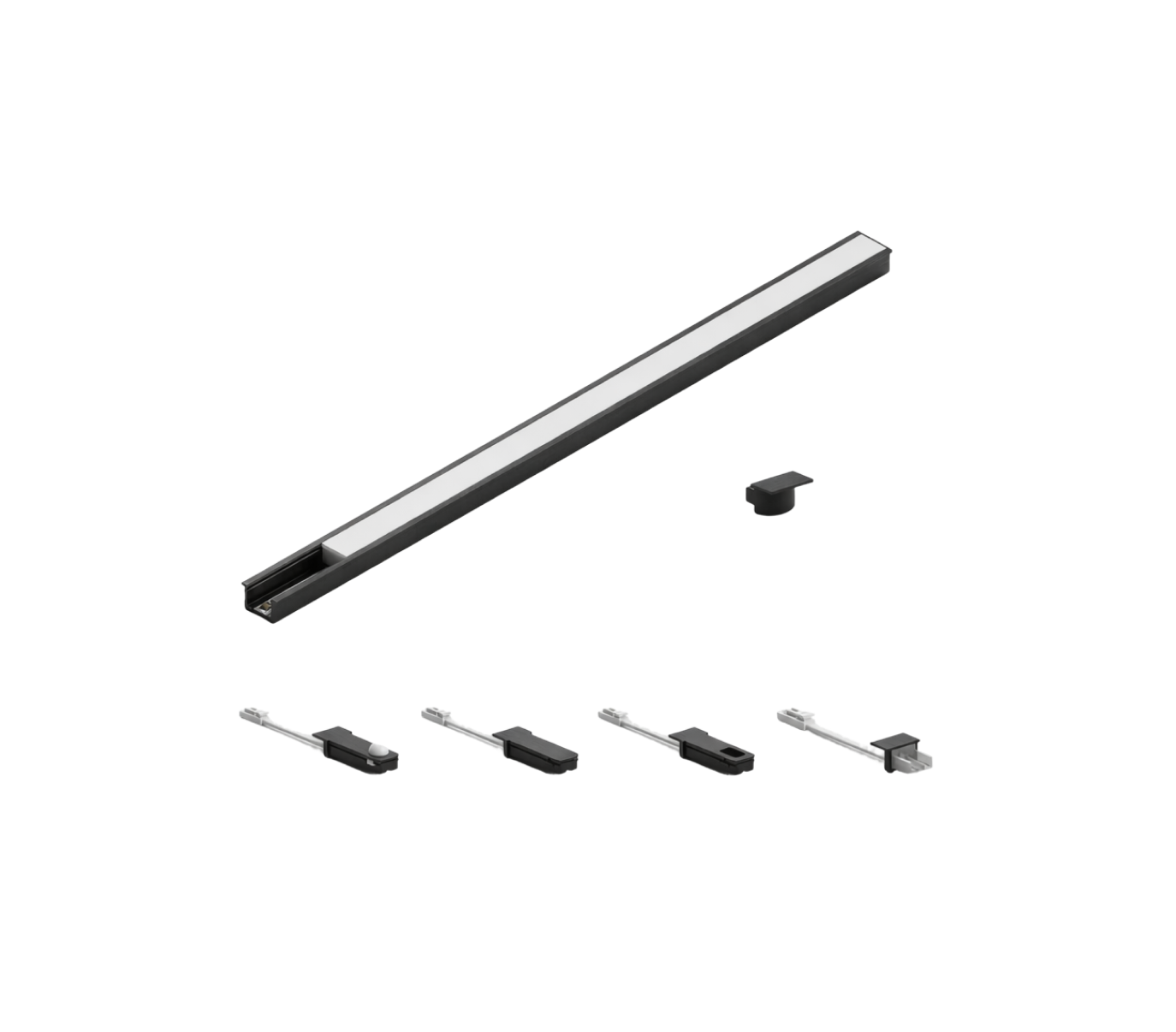

- Order with it: a universal Recessed End Cap Set at each end, a Mounting Clip Set and a 24V Xaact driver sized to total connected load
Maximum single section 9.84 ft. Longer runs are made from multiple sections joined in line, each fed from the same circuit.
$30.00
Shipping calculated at checkout.
Need advice? Consult a Lighting Expert.
Email us
We'll reply in 24-48 hours. sales@leonlite.com
Call us
Mon-Fri : 8AM-4PM 800-990-7688
Couldn't load pickup availability
Pickup available at LeonLite Fulfillment Center
Usually ready in 2 hoursProduct Highlights
WDC
2700K / 4000K Reverse Polar CCT
24V
Voltage
3 years
Warranty
Specifications
| Lumens | 83 lm / ft |
| Color Temperature | 2CCT, 2700K / 4000K |
| CRI | >90 |
| Beam Angle | 120 Degree |
| Wattage | 3.66 W/ ft |
| Voltage | 24V |
| Waterproof Rating | IP4X |
| Operating Temp | -4°F to 104°F (-20°C-40°C) |
| Lifespan | 50000 hr |
| Finish | Titanium Grey |
| Material | Aluminum+PC |
Documentation
Certifications
Xaact - Recessed Mod
Model No. SG6ILRF-SC24VH2CCT
The Xaact Recessed Mod is a 24V cut-to-length recessed channel that finishes flush, leaving no hardware on the elevation. Linear and 90° couplers carry a run across a joint or around a corner as one continuous lit line.
- Application: Flush millwork and casework where no fixture should be visible
- Cut anywhere: Field-cuttable at any point — no fixed cut increment, so an opening is lit to its actual dimension
- Order with it: a universal Recessed End Cap Set at each end, a Mounting Clip Set and a 24V Xaact driver sized to total connected load
Maximum single section 9.84 ft. Longer runs are made from multiple sections joined in line, each fed from the same circuit.
