LumeX™ Square

Specifications

Lumens 540 Lumens
Color Temperature 2700K/3000K/3500K/4000K/5000K
CRI 90+
Beam Angle 35 Degree
Wattage 12W
Voltage 120V
Waterproof Rating Damp
Operating Temp 5°F to 104°F
Lifespan 50000 Hrs
Light Source LED
Finish White
Material Aluminum
Documentation

Certifications

  • FCC Listed

LumeX™ Square

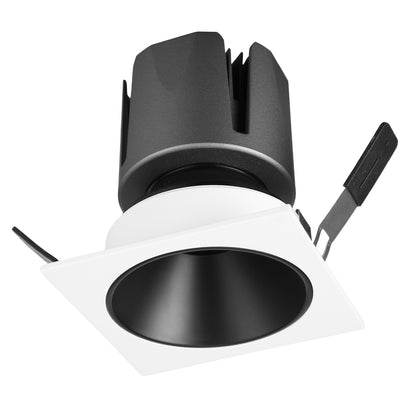

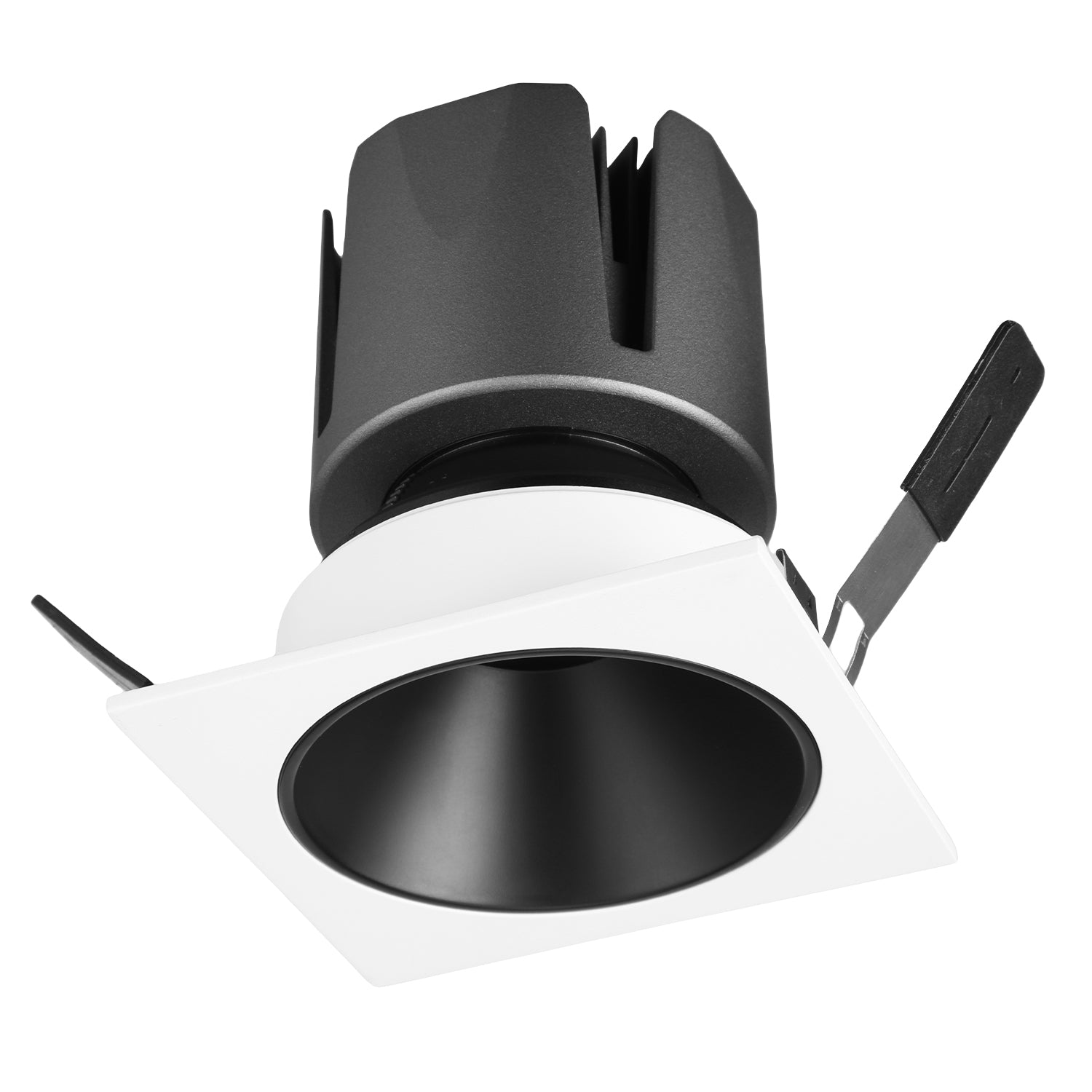

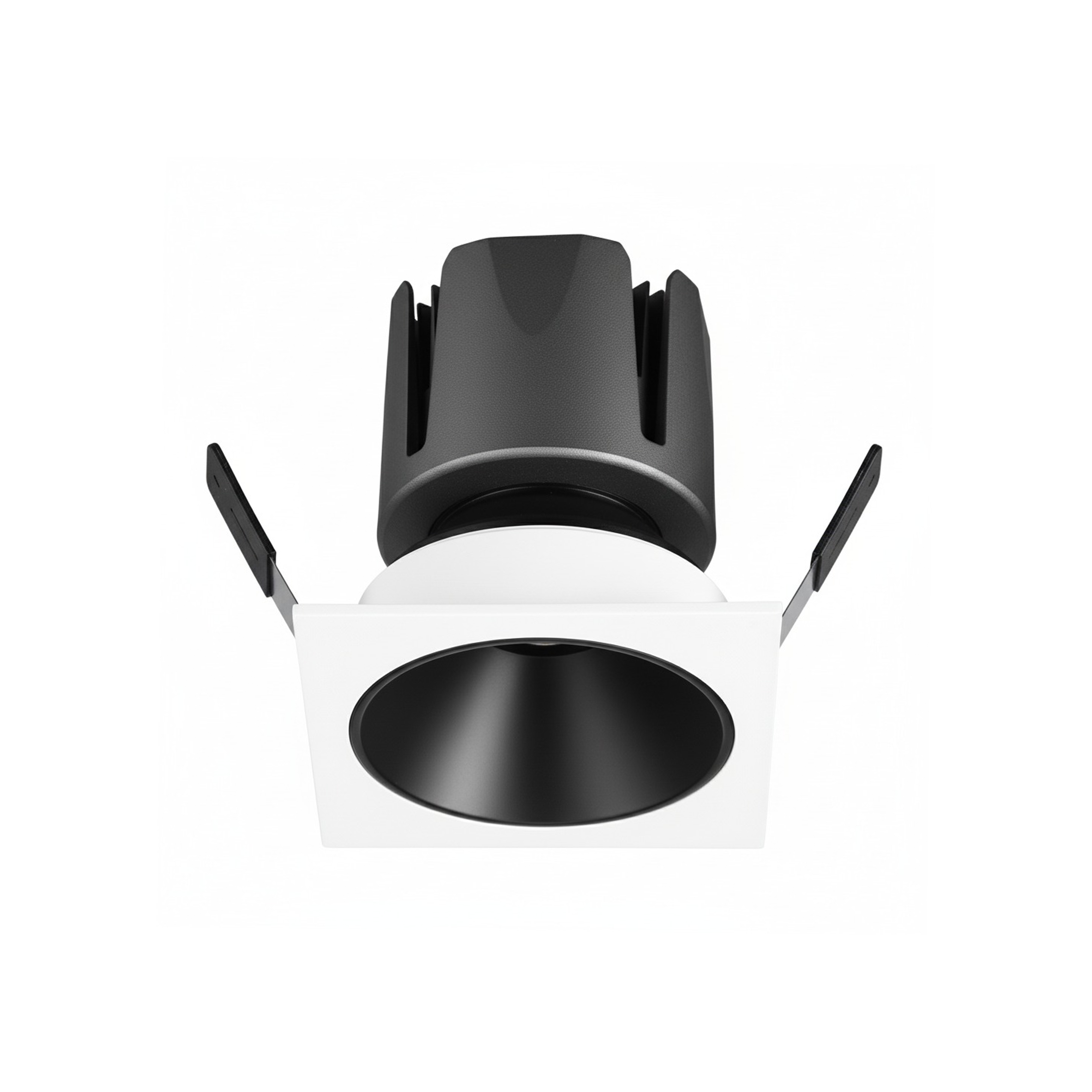

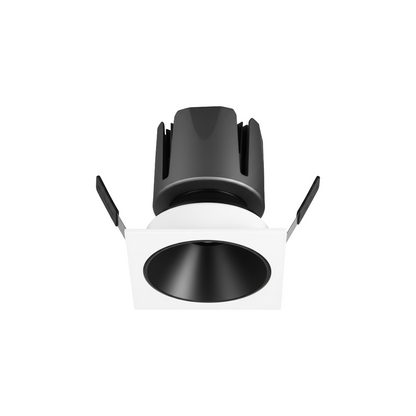

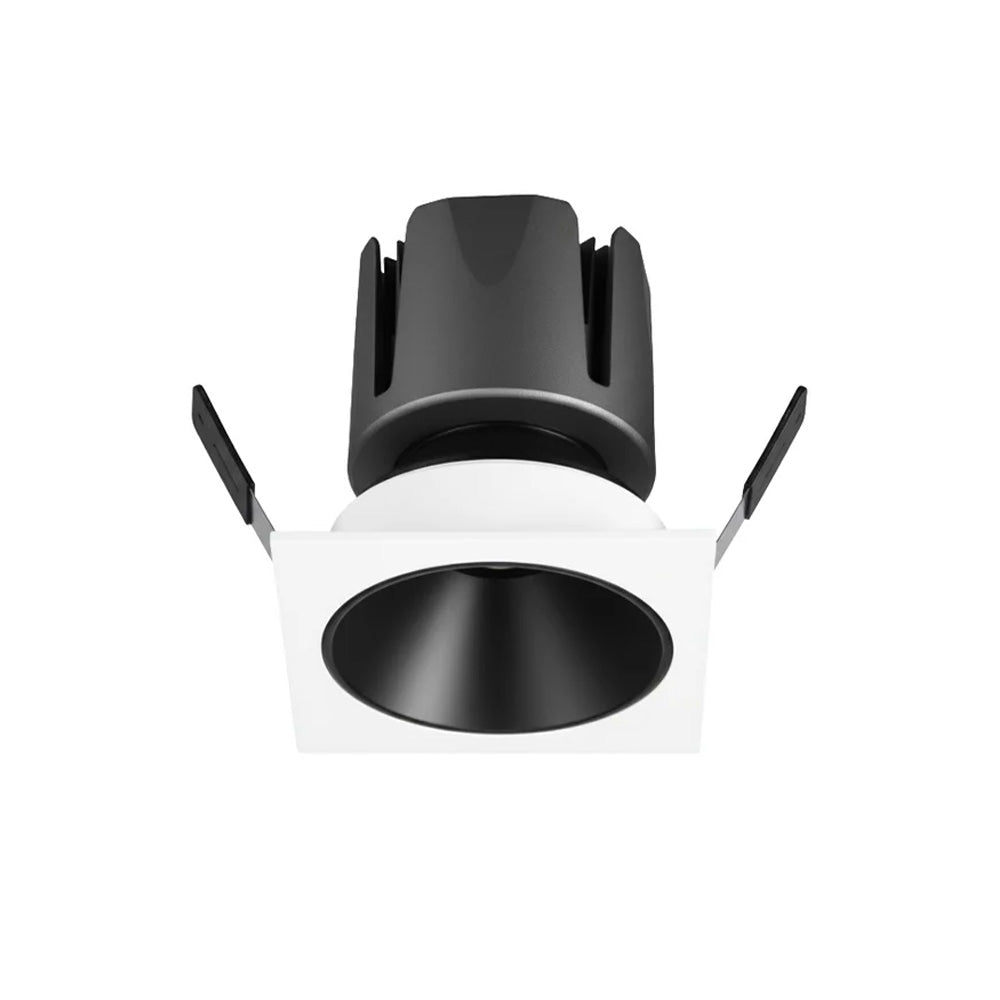

4" Deep Trim Gimbal 5CCT IC Rated Dimmable LED Square Canless Downlight

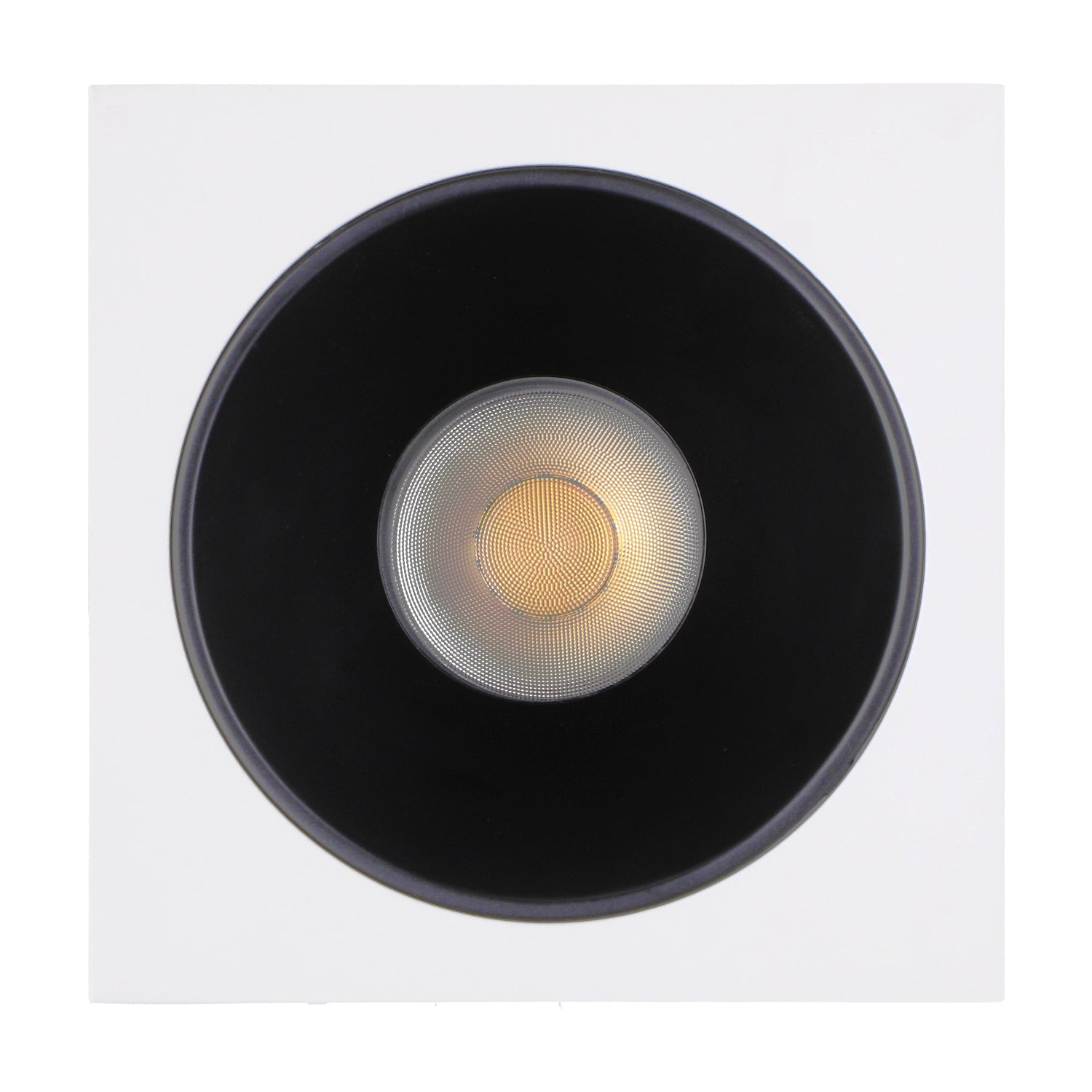

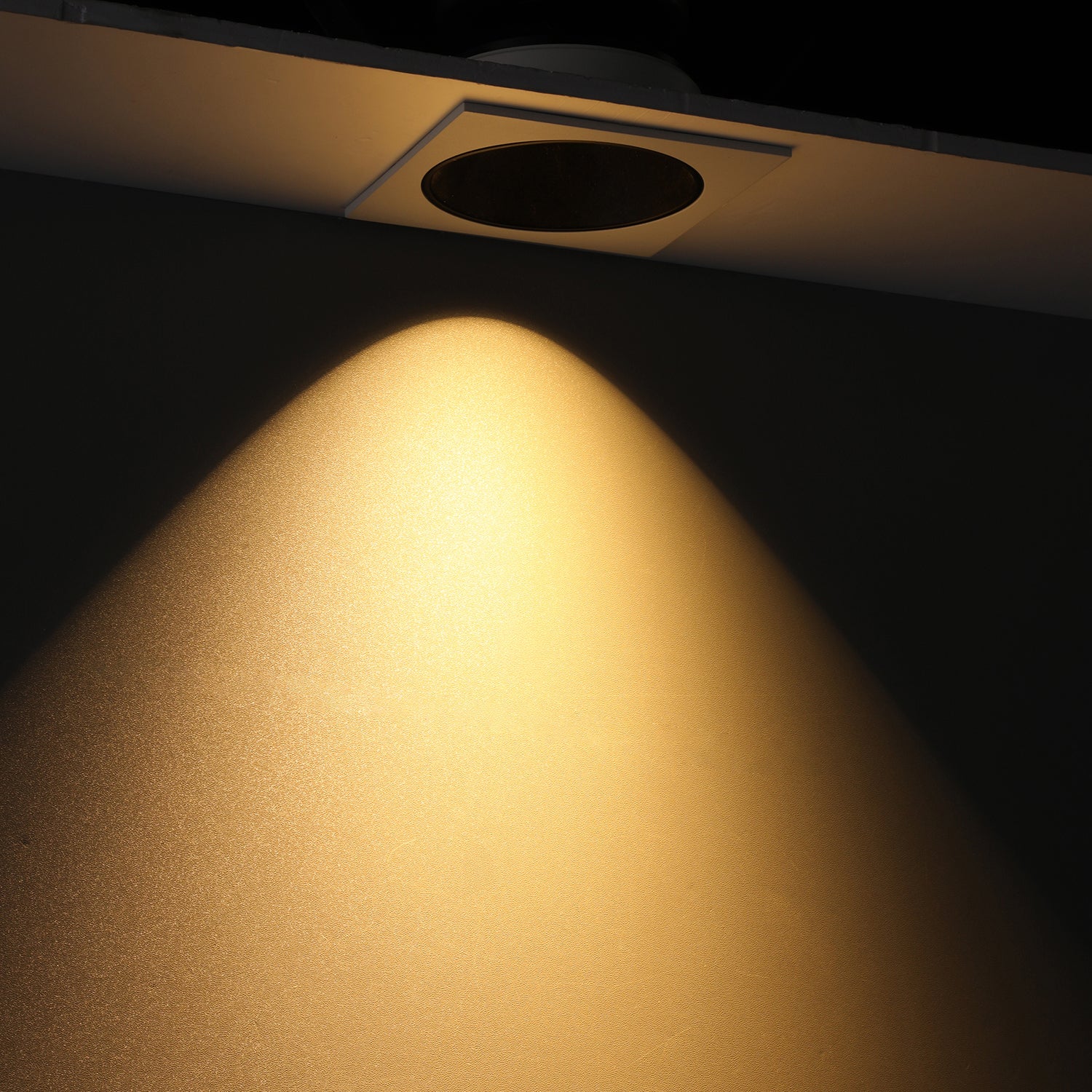

This adjustable recessed LED downlight features deep-set COB optics with a black baffle to reduce glare and provide uniform illumination. With 5 selectable color temperatures, CRI90 for vivid color rendering, and a 0–20° tilt for flexible accent or general lighting, it delivers 540 lumens at just 12W and lasts up to 50,000 hours.

FAQs

Please read our FAQs page to find out more.

I’m sensitive to glare—will this deep-recessed square downlight feel harsh? Does the deep trim make it look dimmer?

The deep-recessed optic and matte black inner trim block the direct light source and cut ceiling reflections, so the light feels soft, not harsh. Comfort improves without sacrificing useful brightness; pair it with your preferred CCT and dimming level for both clarity and a glare-free look.

I love the square frame, but does it make cutouts complicated? Do I need a square hole? Will it disrupt the clean ceiling look?

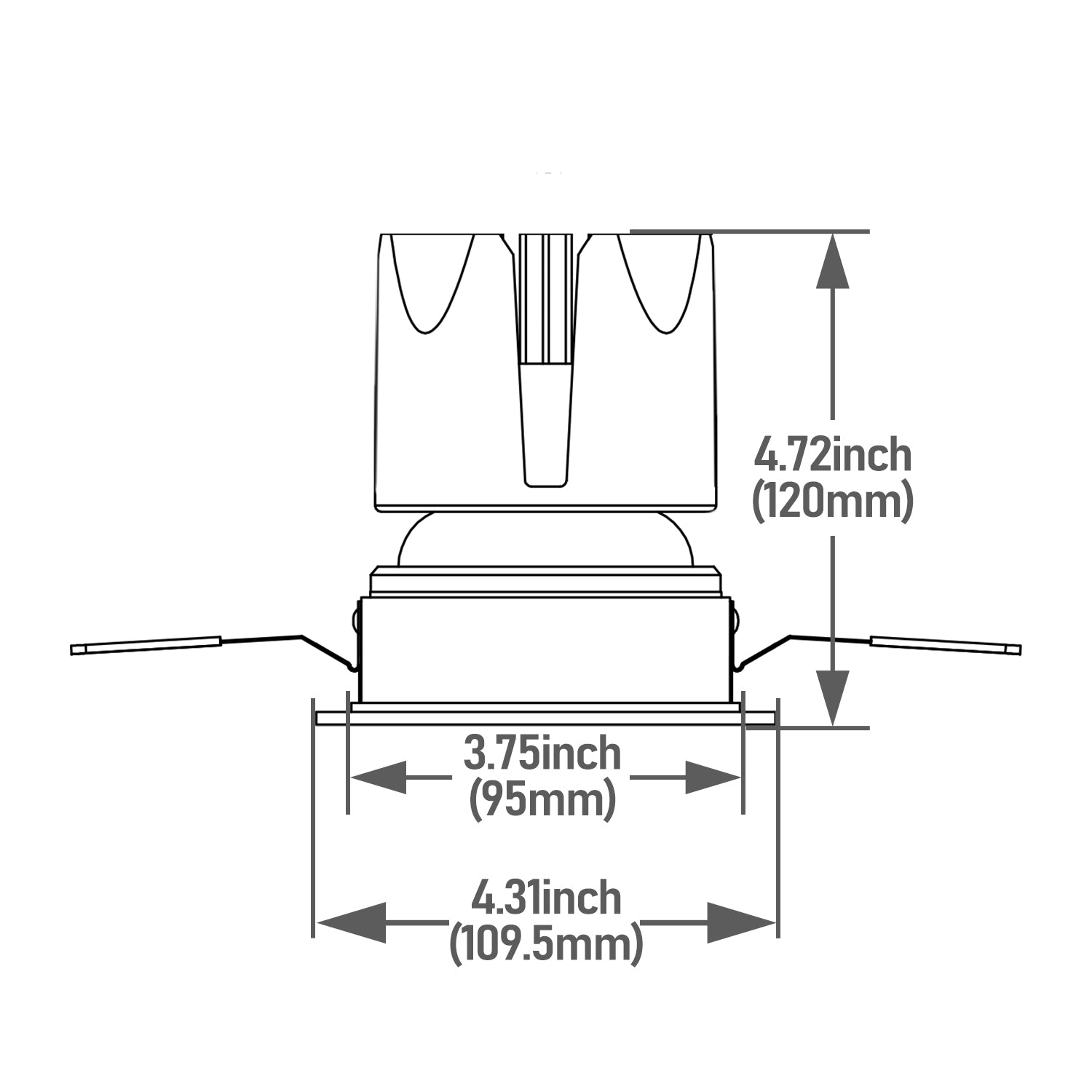

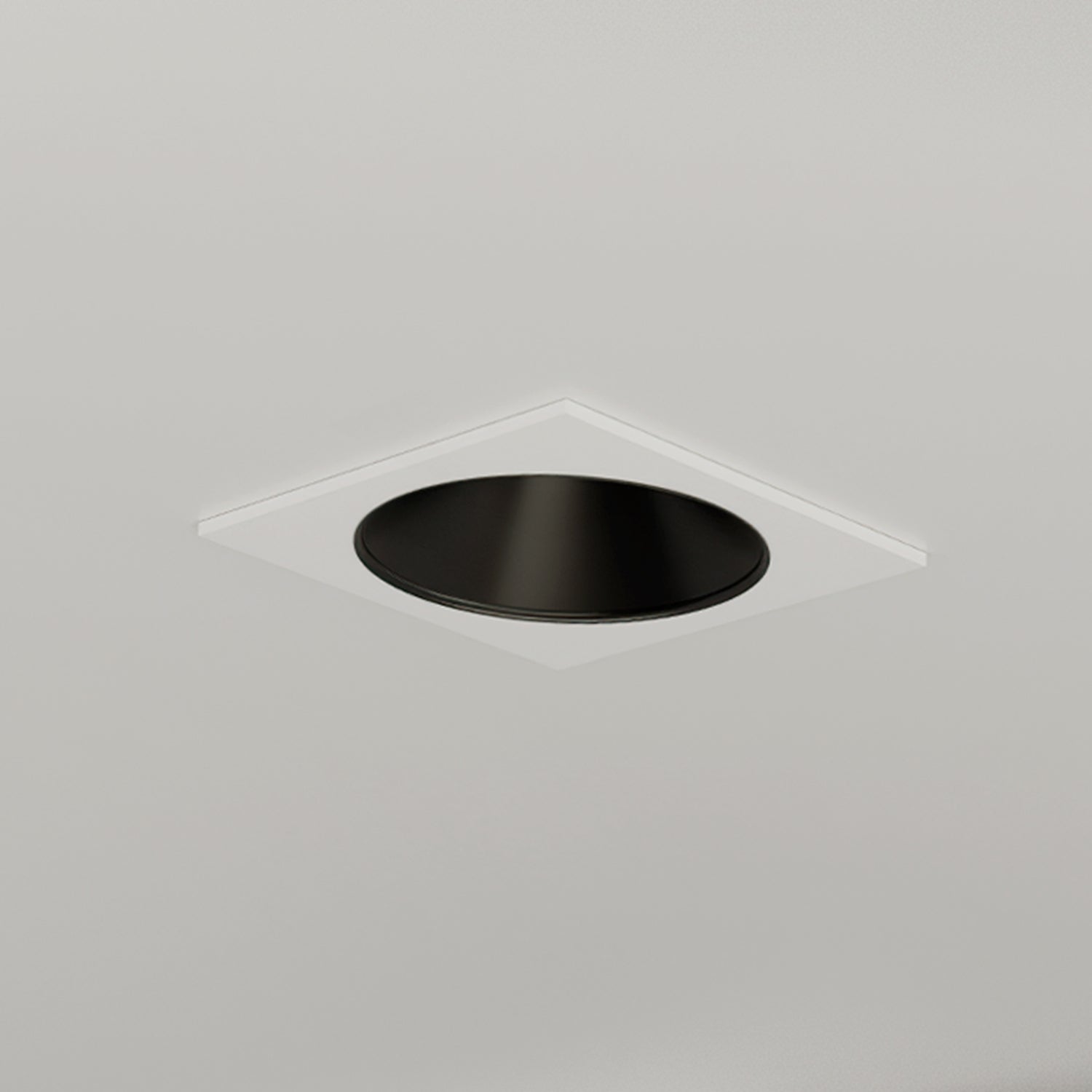

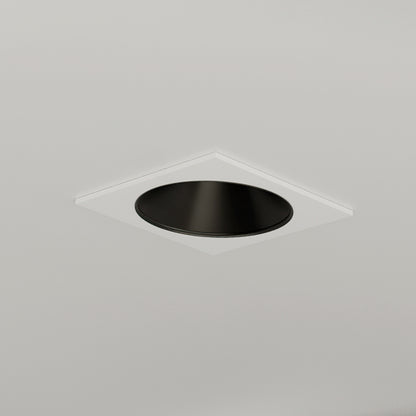

Follow the specified standard cutout size (no can housing required); the square trim cleanly covers the edge for a seamless look. Align the trim parallel to room lines before seating the spring clips for a crisp finish. The beam remains smooth and round-edged—trim shape doesn’t degrade light quality.

Is installation complicated? Do I need a separate can or brackets? Will it damage my ceiling?

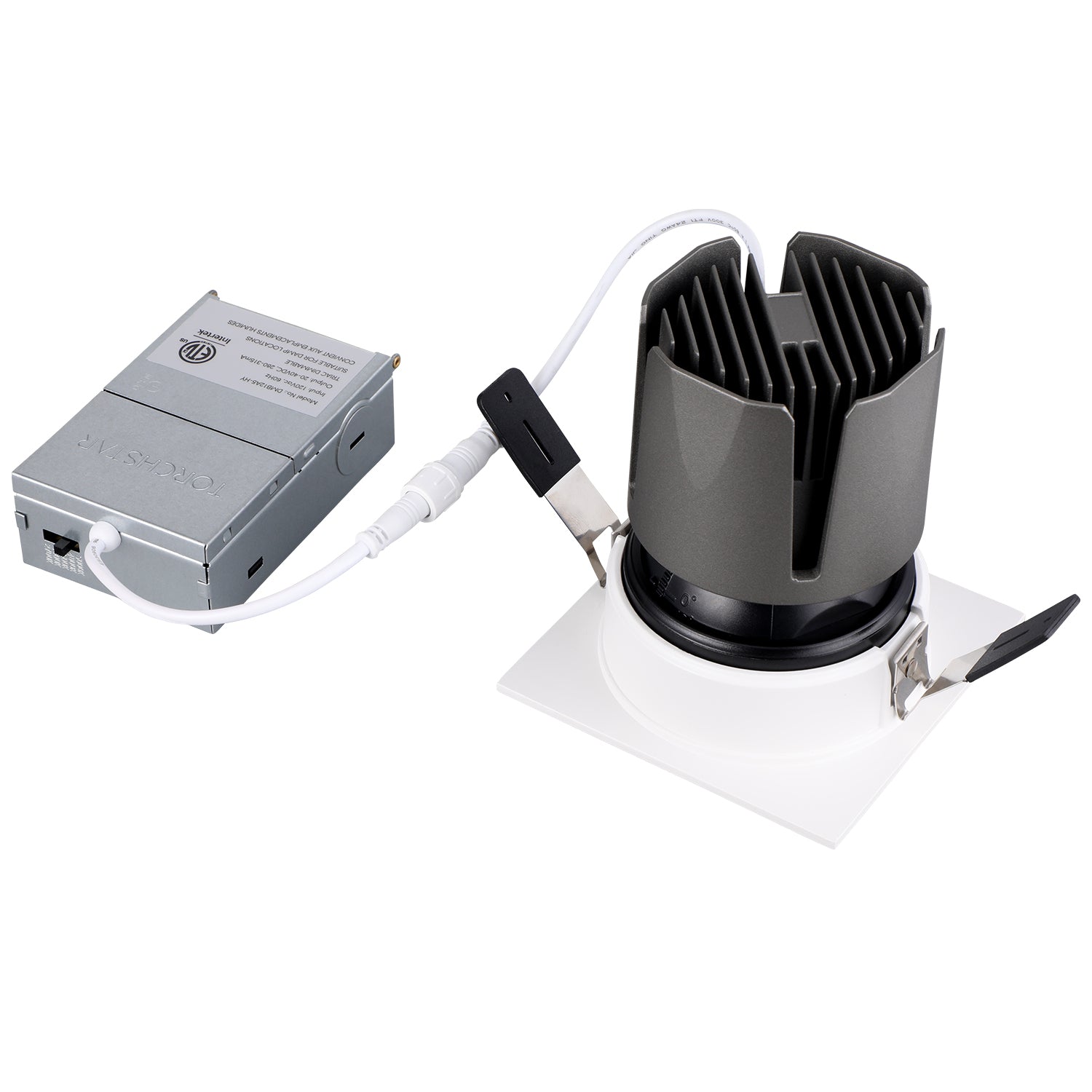

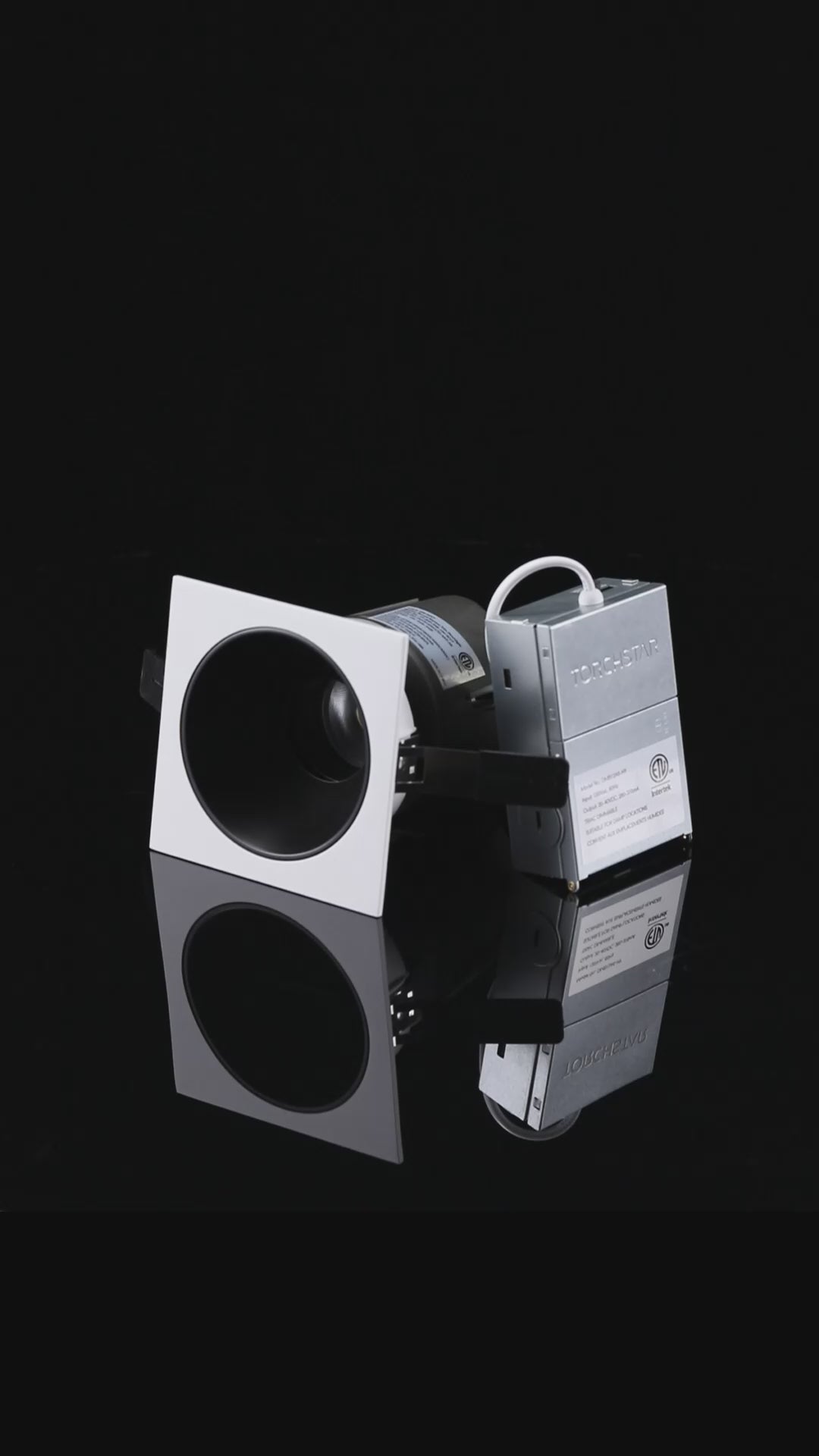

It’s a canless setup with spring clips and an integrated J-box: cut the opening, make the J-box connections, then push the fixture in to lock. No can or extra holes needed, so the ceiling stays clean. If you’re comfortable with basic wiring, it’s a quick install (always power off and follow local code).

Is 20° of adjustability enough? Can I aim at artwork, display cabinets, or a reading nook—and help avoid direct glare?

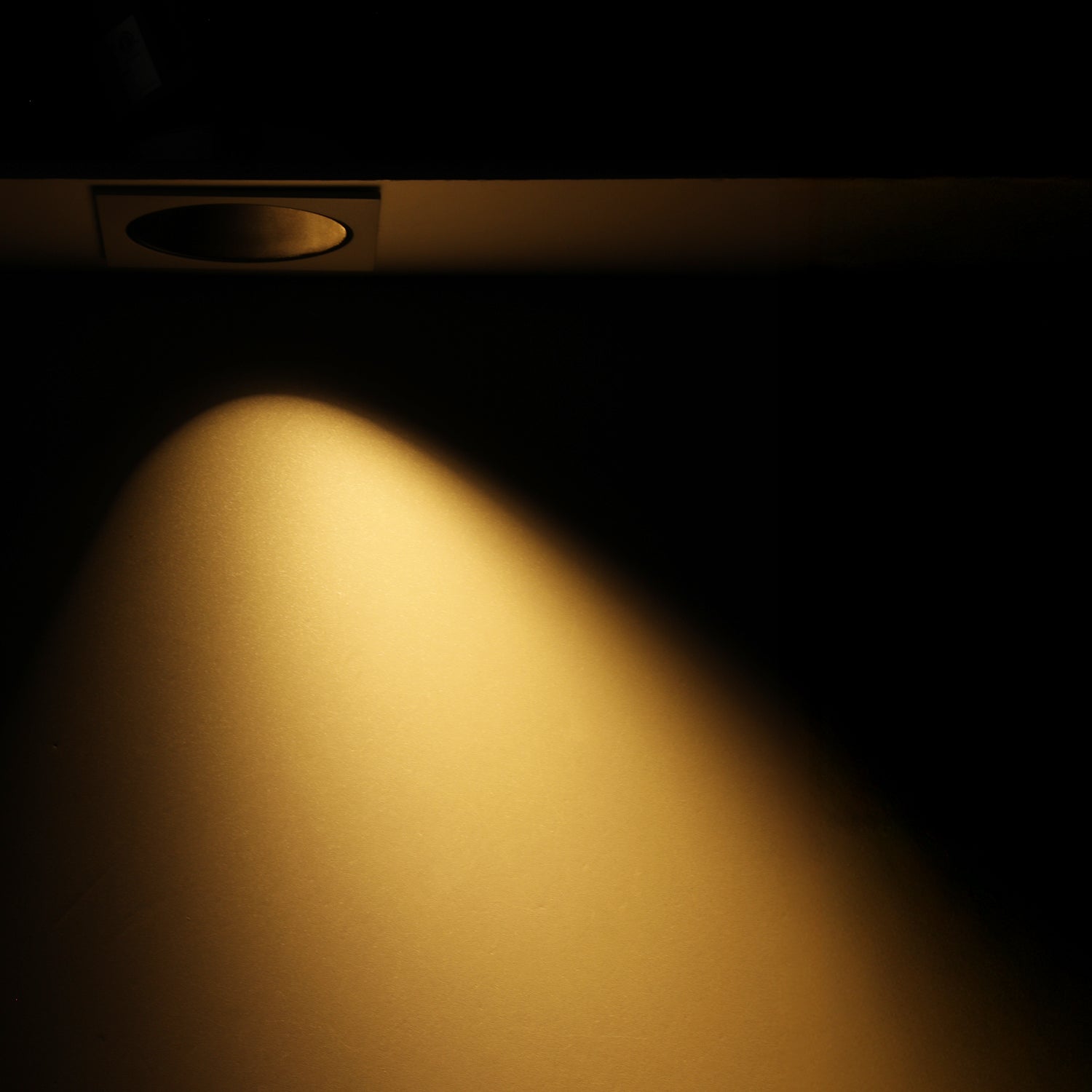

The 20° tilt lets you pull the beam toward walls or targets for clean wall-washing and accenting—perfect for art, displays, or reading corners—and helps nudge the beam out of your direct line of sight to reduce glare. Fine-tune the mood with 5CCT and smooth dimming as needed.
