Product Highlights
WDC
2700K / 4000K Reverse Polar CCT
24V
Voltage
3 years
Warranty
SG6ILRLL-SC24VH2CCT
Model No. SG6ILRLL-SC24VH2CCT (Left) · SG6ILRRL-SC24VH2CCT (Right)
The Xaact Recessed Tilt is a 24V cut-to-length recessed channel with a handed asymmetric optic that washes to one side while the diodes stay concealed.

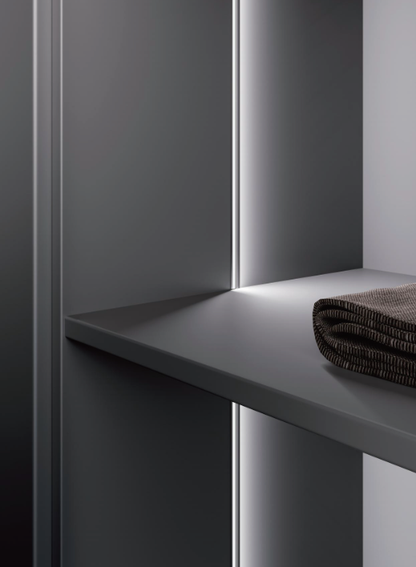

- Application: Washing a back panel, wall or displayed goods from a concealed groove

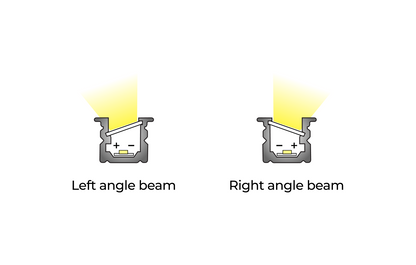

- Specify the hand: Left and right are not interchangeable — order by the direction output is required
- Order with it: one Left and one Right Recessed End Cap Set per run, a Mounting Clip Set and a 24V Xaact driver sized to total connected load

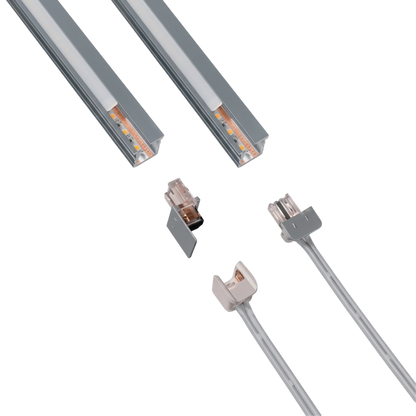

Maximum single section 9.84 ft. Longer runs are made from multiple sections joined in line, each fed from the same circuit.
$30.00
Shipping calculated at checkout.
Need advice? Consult a Lighting Expert.
Email us
We'll reply in 24-48 hours. sales@leonlite.com
Call us
Mon-Fri : 8AM-4PM 800-990-7688
Couldn't load pickup availability
Pickup available at LeonLite Fulfillment Center
Usually ready in 2 hoursProduct Highlights
WDC
2700K / 4000K Reverse Polar CCT
24V
Voltage
3 years
Warranty
Specifications
| Lumens | 153lm/ft |
| Color Temperature | 2CCT, 2700K / 4000K |
| CRI | >90 |
| Beam Angle | 120 Degree |
| Wattage | 3.66W/ft |
| Voltage | 24V |
| Waterproof Rating | IP4X |
| Operating Temp | -4°F to 104°F (-20°C-40°C) |
| Lifespan | 50000 hr |
| Finish | Titanium Gray |
| Material | Aluminum + PC |
Documentation

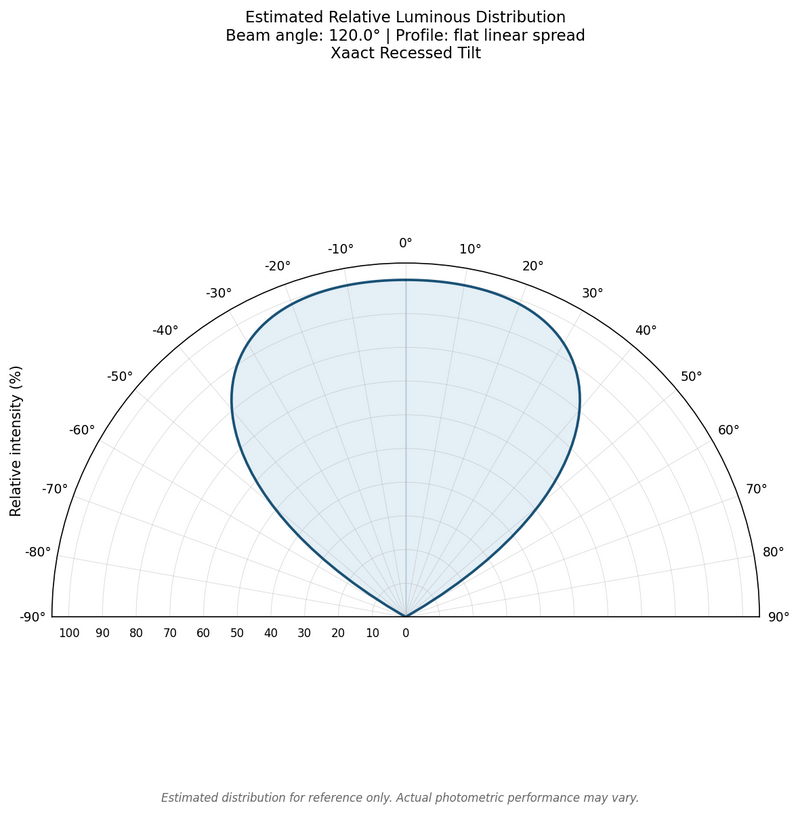

Photometric Data
Certifications
Xaact - Recessed Tilt
Model No. SG6ILRLL-SC24VH2CCT (Left) · SG6ILRRL-SC24VH2CCT (Right)
The Xaact Recessed Tilt is a 24V cut-to-length recessed channel with a handed asymmetric optic that washes to one side while the diodes stay concealed.
- Application: Washing a back panel, wall or displayed goods from a concealed groove
- Specify the hand: Left and right are not interchangeable — order by the direction output is required
- Order with it: one Left and one Right Recessed End Cap Set per run, a Mounting Clip Set and a 24V Xaact driver sized to total connected load
Maximum single section 9.84 ft. Longer runs are made from multiple sections joined in line, each fed from the same circuit.
