Product Highlights
WDC
2700K / 4000K Reverse Polar CCT
24V
Voltage
3 years
Warranty
SG6ILRS-SC24VH2CCT
Model No. SG6ILRS-SC24VH2CCT

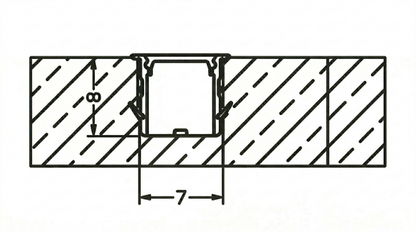

The Xaact Recessed Ultra-slim is a 24V cut-to-length recessed channel narrow enough for stock too thin to route for a full-size profile.

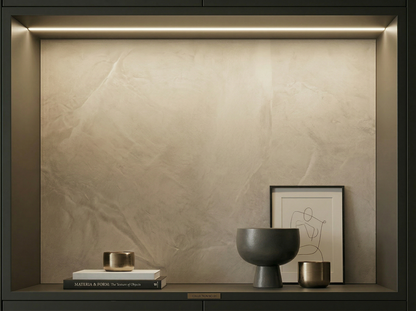

- Application: Shelf edges, glazed frame members and narrow reveals between cabinet boxes
- Cut anywhere: Field-cuttable at any point — no fixed cut increment, so an opening is lit to its actual dimension
- Order with it: a universal Recessed End Cap Set at each end, a Mounting Clip Set and a 24V Xaact driver sized to total connected load
Maximum single section 9.84 ft. Longer runs are made from multiple sections joined in line, each fed from the same circuit.
$30.00
Shipping calculated at checkout.
Need advice? Consult a Lighting Expert.
Email us
We'll reply in 24-48 hours. sales@leonlite.com
Call us
Mon-Fri : 8AM-4PM 800-990-7688
Couldn't load pickup availability
Pickup available at LeonLite Fulfillment Center
Usually ready in 2 hoursProduct Highlights
WDC
2700K / 4000K Reverse Polar CCT
24V
Voltage
3 years
Warranty
Specifications
| Lumens | 130 lm/ft |
| Color Temperature | 2CCT, 2700K / 4000K |
| CRI | >90 |
| Beam Angle | 120 Degree |
| Wattage | 3.66 W/ft |
| Voltage | 24V |
| Waterproof Rating | IP4X |
| Operating Temp | -4°F to 104°F (-20°C-40°C) |
| Lifespan | 50000 hr |
| Finish | Titanium Grey |
| Material | Aluminum+PC |
Documentation

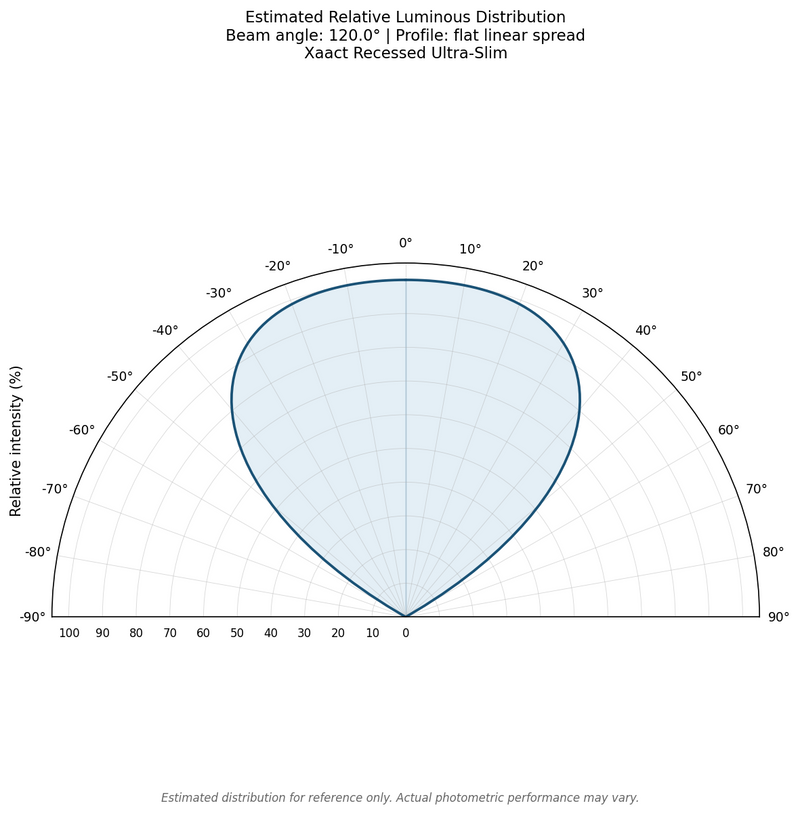

Photometric Data
Certifications

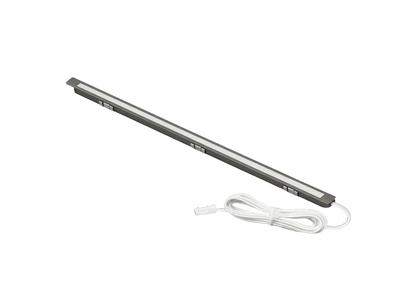

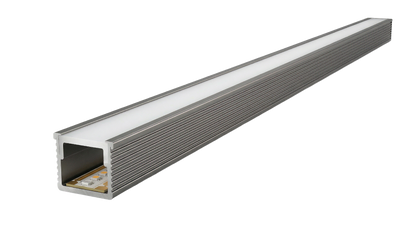

Xaact - Recessed Ultra-slim
Model No. SG6ILRS-SC24VH2CCT
The Xaact Recessed Ultra-slim is a 24V cut-to-length recessed channel narrow enough for stock too thin to route for a full-size profile.
- Application: Shelf edges, glazed frame members and narrow reveals between cabinet boxes
- Cut anywhere: Field-cuttable at any point — no fixed cut increment, so an opening is lit to its actual dimension
- Order with it: a universal Recessed End Cap Set at each end, a Mounting Clip Set and a 24V Xaact driver sized to total connected load
Maximum single section 9.84 ft. Longer runs are made from multiple sections joined in line, each fed from the same circuit.
