Xaact - Surface Broad

Wide-Beam LED Under-Cabinet Light, Cut to Length
Wide-Beam LED Under-Cabinet Light, Cut to Length – view 2
Wide-Beam LED Under-Cabinet Light, Cut to Length – view 3

Product Highlights

WDC

2700K / 4000K Reverse Polar CCT

24V

Voltage

3 years

Warranty

SG6ILSUD-SC24VH2CCT

Model No. SG6ILSUD-SC24VH2CCT

The Xaact Surface Broad is a 24V cut-to-length surface channel profiled for the underside of shelving and display casework.

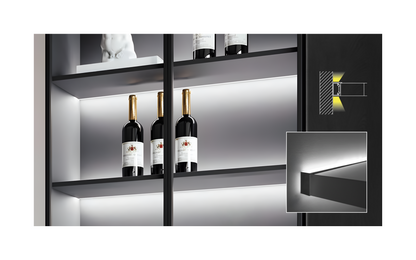

  • Application: Shelf undersides, display cases and wardrobe interiors
  • Cut anywhere: Field-cuttable at any point — no fixed cut increment, so an opening is lit to its actual dimension
  • Order with it: one Left and one Right Surface End Cap Set per run, a Mounting Clip Set and a 24V Xaact driver sized to total connected load

Maximum single section 9.84 ft. Longer runs are made from multiple sections joined in line, each fed from the same circuit.

$30.00
Shipping calculated at checkout.
Need advice? Consult a Lighting Expert.

Email us
We'll reply in 24-48 hours. sales@leonlite.com

Call us
Mon-Fri : 8AM-4PM 800-990-7688

Pickup available at LeonLite Fulfillment Center

Usually ready in 2 hours

Product Highlights

WDC

2700K / 4000K Reverse Polar CCT

24V

Voltage

3 years

Warranty

Specifications

Lumens 130 lm/ft
Color Temperature 2CCT, 2700K / 4000K
CRI >90
Beam Angle 120 Degree
Wattage 3.66 W/ft
Voltage 24V
Waterproof Rating IP4X
Operating Temp -4°F to 104°F (-20°C-40°C)
Lifespan 50000
Finish Titanium Gray
Material Aluminum + PC
Documentation

Xaact Surface Broad Data Sheet

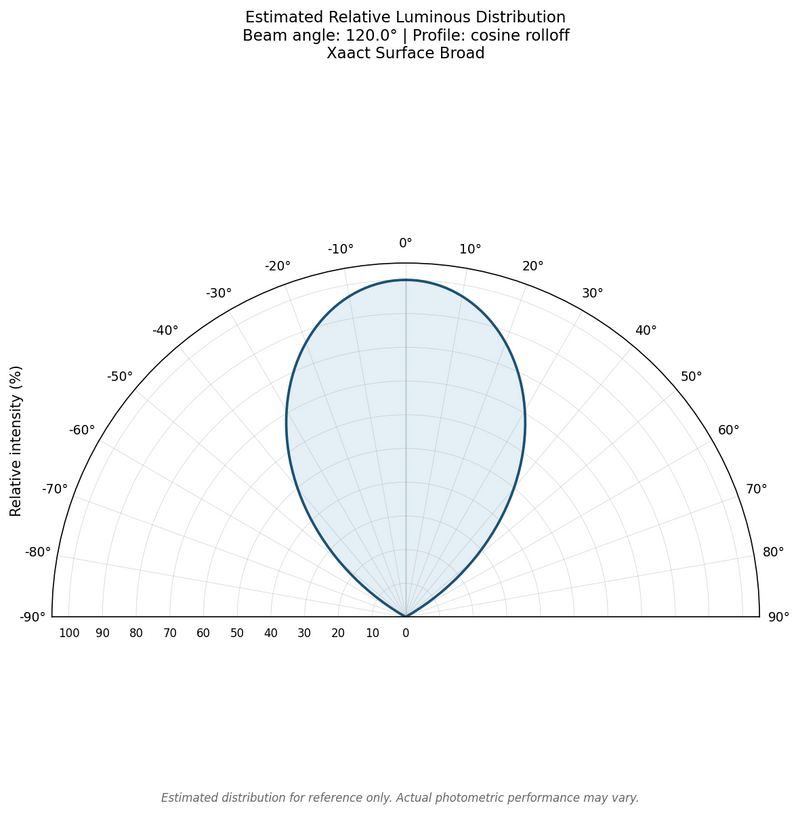

Photometric Data
Photometric Data

Certifications

Xaact - Surface Broad

Model No. SG6ILSUD-SC24VH2CCT

The Xaact Surface Broad is a 24V cut-to-length surface channel profiled for the underside of shelving and display casework.

  • Application: Shelf undersides, display cases and wardrobe interiors
  • Cut anywhere: Field-cuttable at any point — no fixed cut increment, so an opening is lit to its actual dimension
  • Order with it: one Left and one Right Surface End Cap Set per run, a Mounting Clip Set and a 24V Xaact driver sized to total connected load

Maximum single section 9.84 ft. Longer runs are made from multiple sections joined in line, each fed from the same circuit.

FAQs

Please read our FAQs page to find out more.

What is Xaact, what makes Xaact so special?

Xaact is special because it is built for exact-fit, cut-to-fit lighting, giving you a cleaner and more customized result than standard fixed-length options. At the same time, Saving 80% of time on cabinet lighting.

What applications is this product suitable for?

This product is normally used in cabinet, closet, shelving, display, and other furniture lighting applications. Between diving panel and the pack panel.

What does the 3+ year warranty mean?

Our 3+ year warranty means the standard coverage starts at 3 years, but for most customers, we can extend the warranty depending on the project requirements. So you are expecting a warranty coverage from 3-7 years from us.

What is the MOQ for this product?

The MOQ is 8 ft combined. You can freely quote multiple type as long as the total length go above 8ft.
