Linear™Strip

Linear™Strip

Product Highlights

4'

Size

120 - 277V

Voltage

3CCT

CCT

1000+

Lumens

50,000hrs

Warranty

5 years

Warranty
In stock, ready to ship

z1598

Linear™Strip

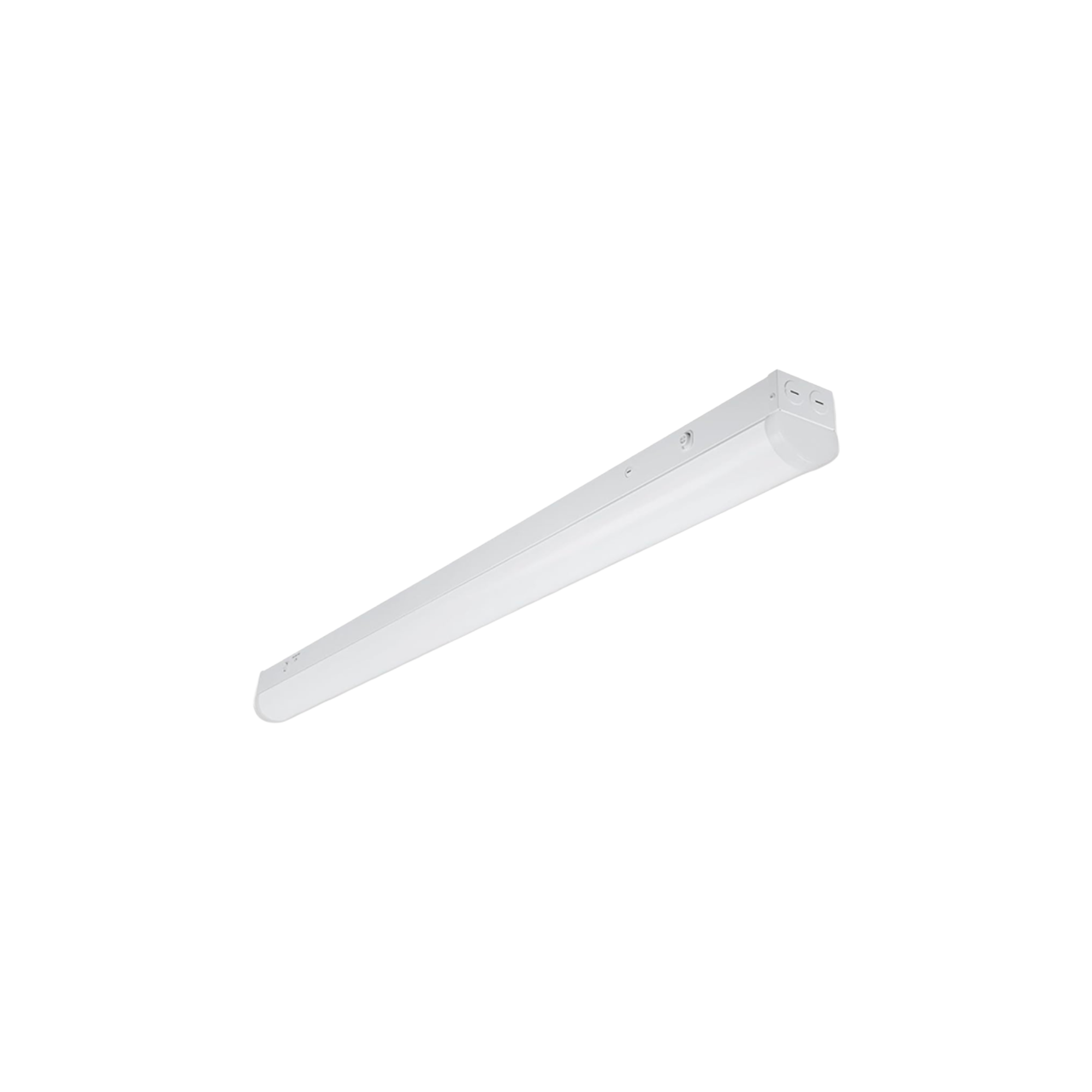

This 4-foot linear fixture delivers 40W of bright, consistent illumination with support for dual mounting options. Designed for versatility, it provides uniform, low-glare lighting ideal for assembly lines, workshops, and open bay areas.

$49.99
Shipping calculated at checkout.
Finish your project
Need advice? Consult a Lighting Expert.

Email us
We'll reply in 24-48 hours. sales@leonlite.com

Call us
Mon-Fri : 8AM-4PM 800-990-7688

Product Highlights

4'

Size

120 - 277V

Voltage

3CCT

CCT

1000+

Lumens

50,000hrs

Warranty

5 years

Warranty

Specifications

Lumens 5200 Lumens
Color Temperature 3500K/4000K/5000K
CRI 80+
Beam Angle 120 Degree
Wattage 40 W
Voltage 120–277 V
Waterproof Rating IP20
Operating Temp -4°F~113°F
Lifespan 50000 Hrs
Light Source LED
Finish White
Material SPCC + PC
Documentation

Specification Sheet(PDF)

User Manual(PDF)

Certifications

  • 120V - 277V

Linear™Strip

This 4-foot linear fixture delivers 40W of bright, consistent illumination with support for dual mounting options. Designed for versatility, it provides uniform, low-glare lighting ideal for assembly lines, workshops, and open bay areas.

FAQs

Please read our FAQs page to find out more.

I’m replacing old tubes in my garage. Will one 4ft light be bright enough over the workbench?

Yes for a single workbench. This unit puts out about 5200lm at 40W. For a two-car garage, most people mount 2–3 fixtures spaced evenly for full-room brightness.

Our building runs at 277V. Will these work in stairwells?

Yes. They accept 120–277V input and give a wide 120° spread, which suits stairwells. They’re indoor (IP20), so use in dry locations.

We’re replacing old strip lights across classrooms. Is installation straightforward?

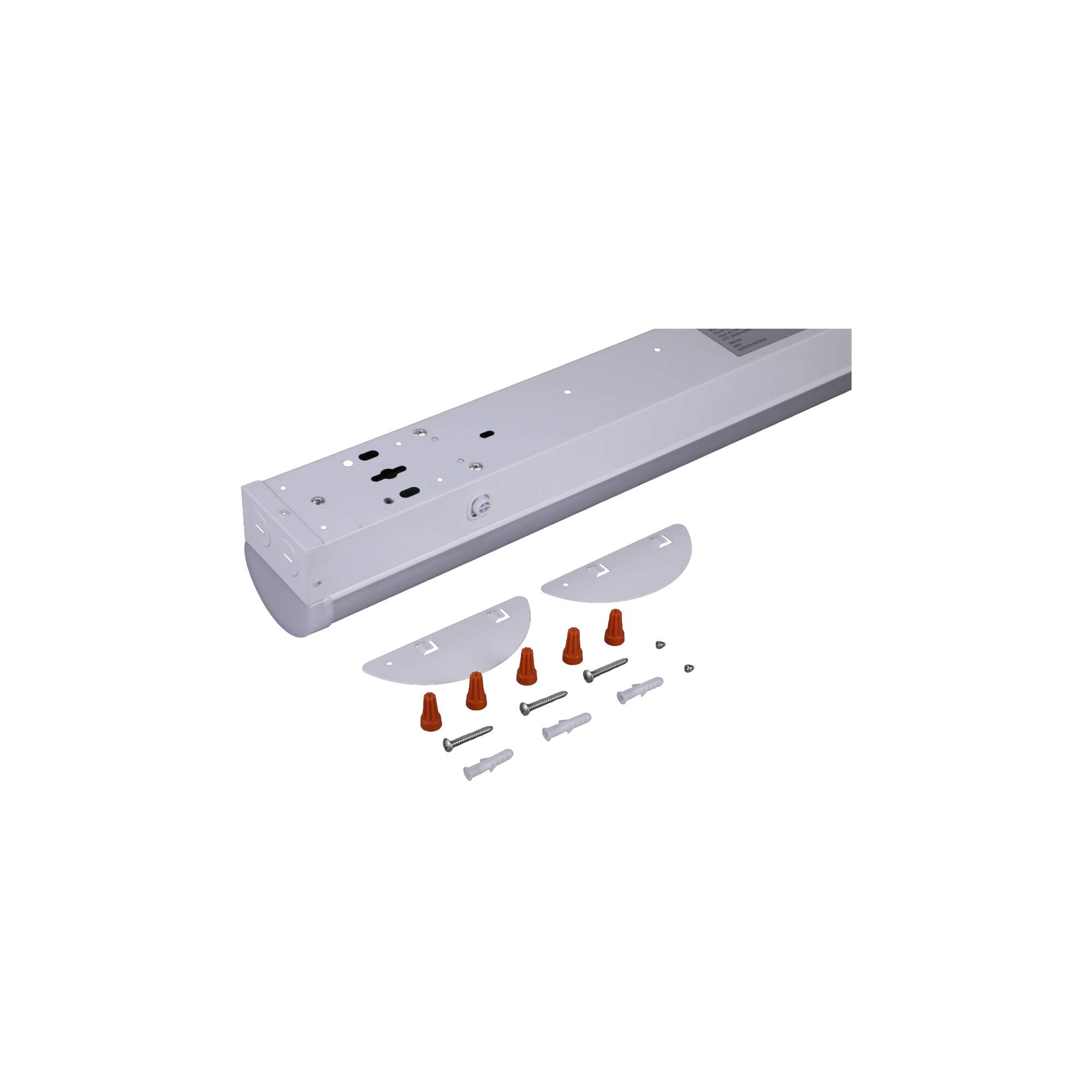

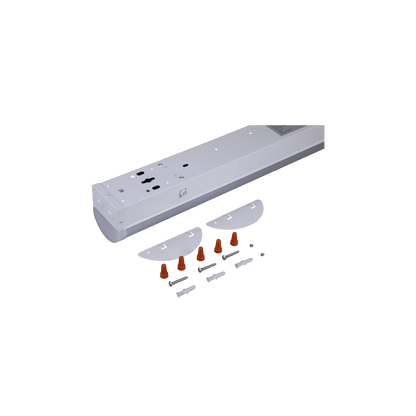

Yes. It’s a flush-mount strip with the mounting hardware included. Mark holes, fix the brackets, connect power, and latch the body.

Our old fluorescents buzzed. Are these quiet?

Yes. They use an LED driver and operate quietly without the buzzing you get from aging ballasts.
