In stock, ready to ship

z1683

Trimless™

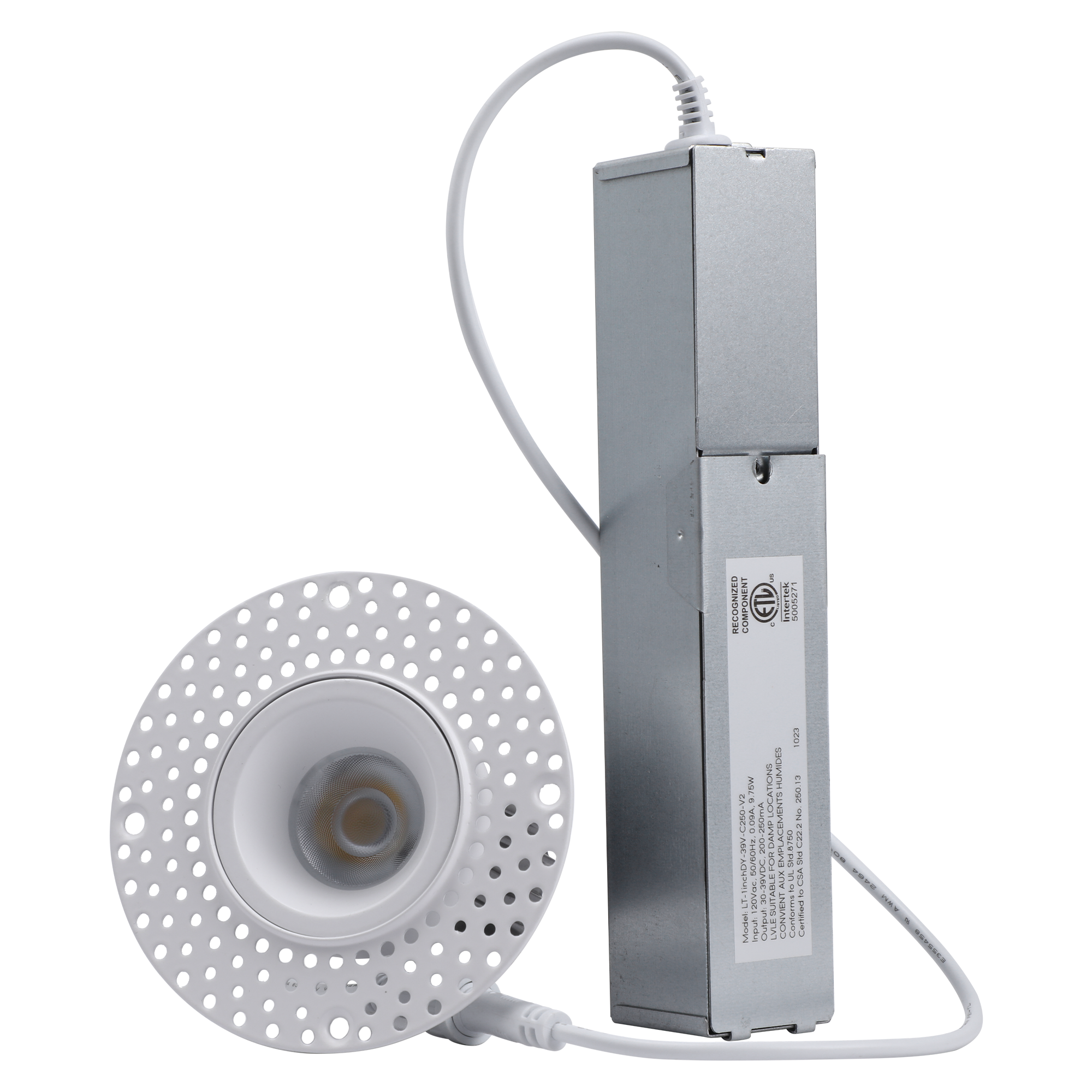

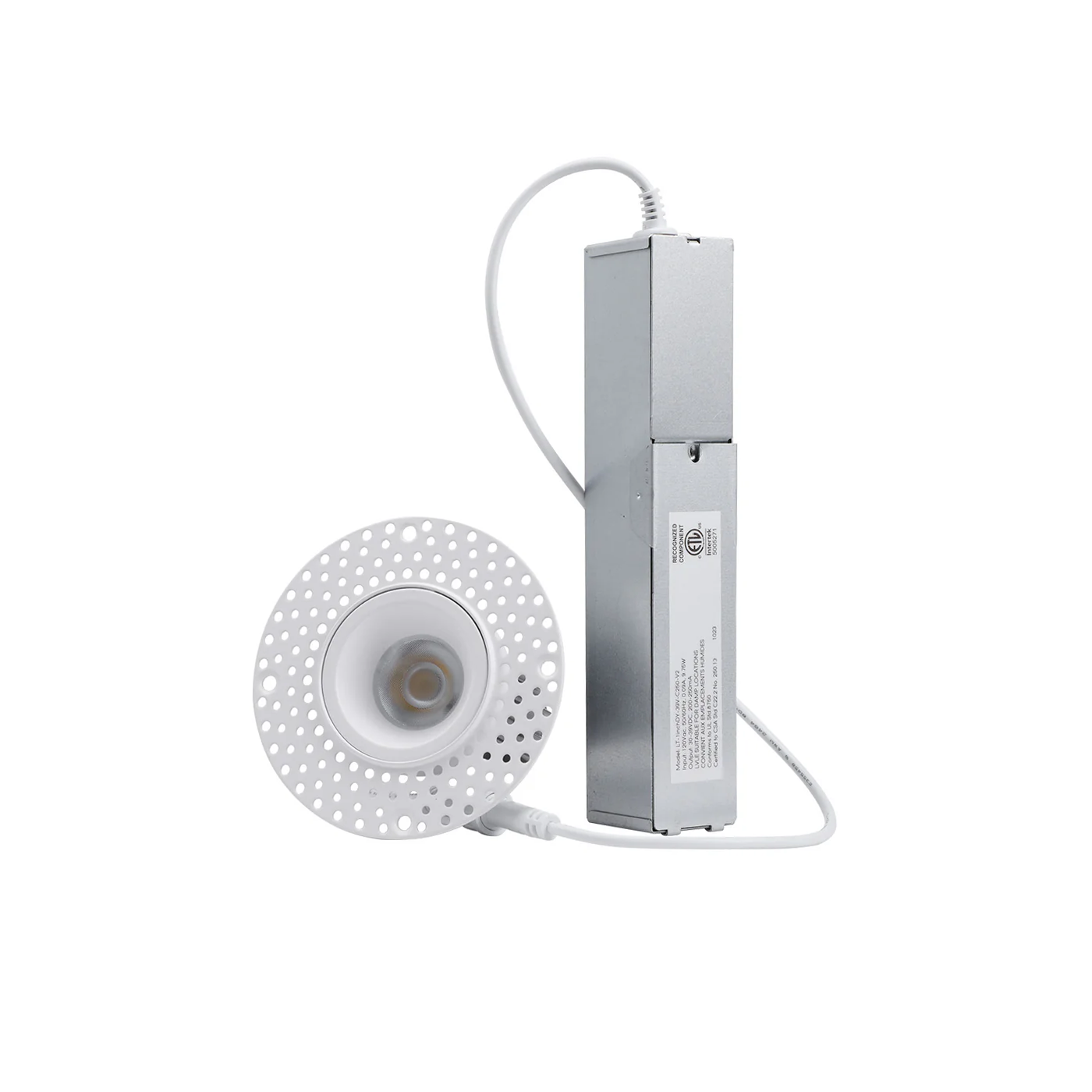

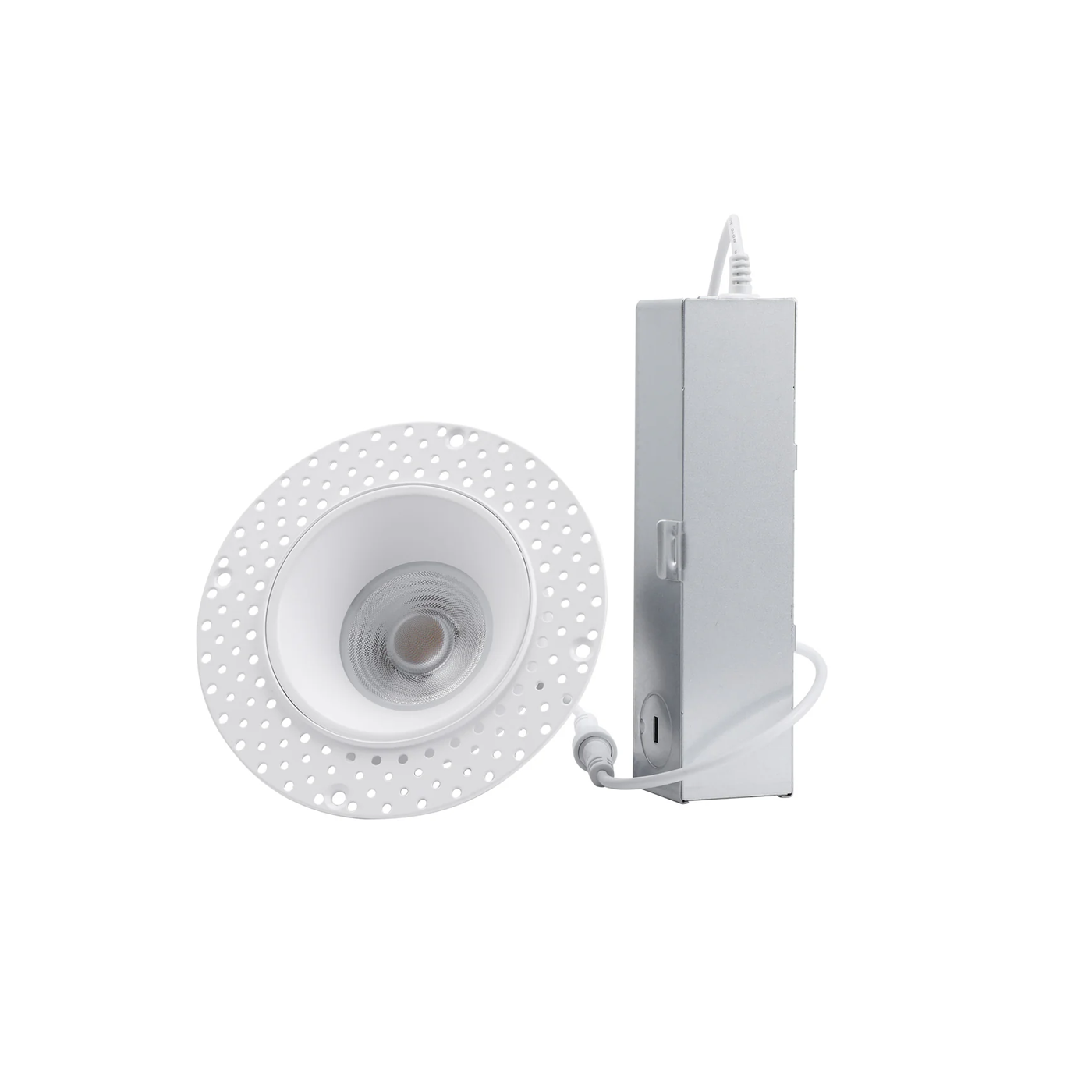

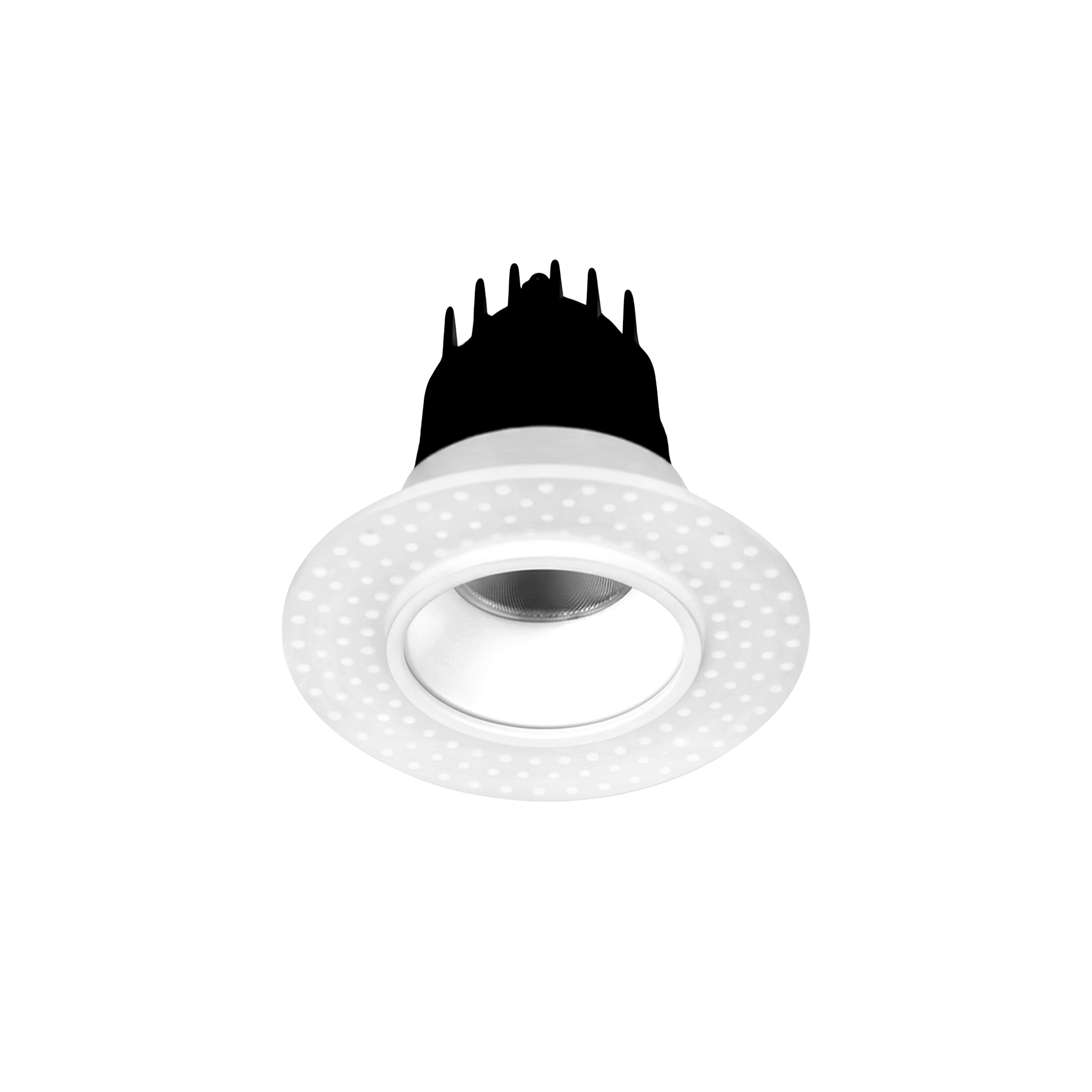

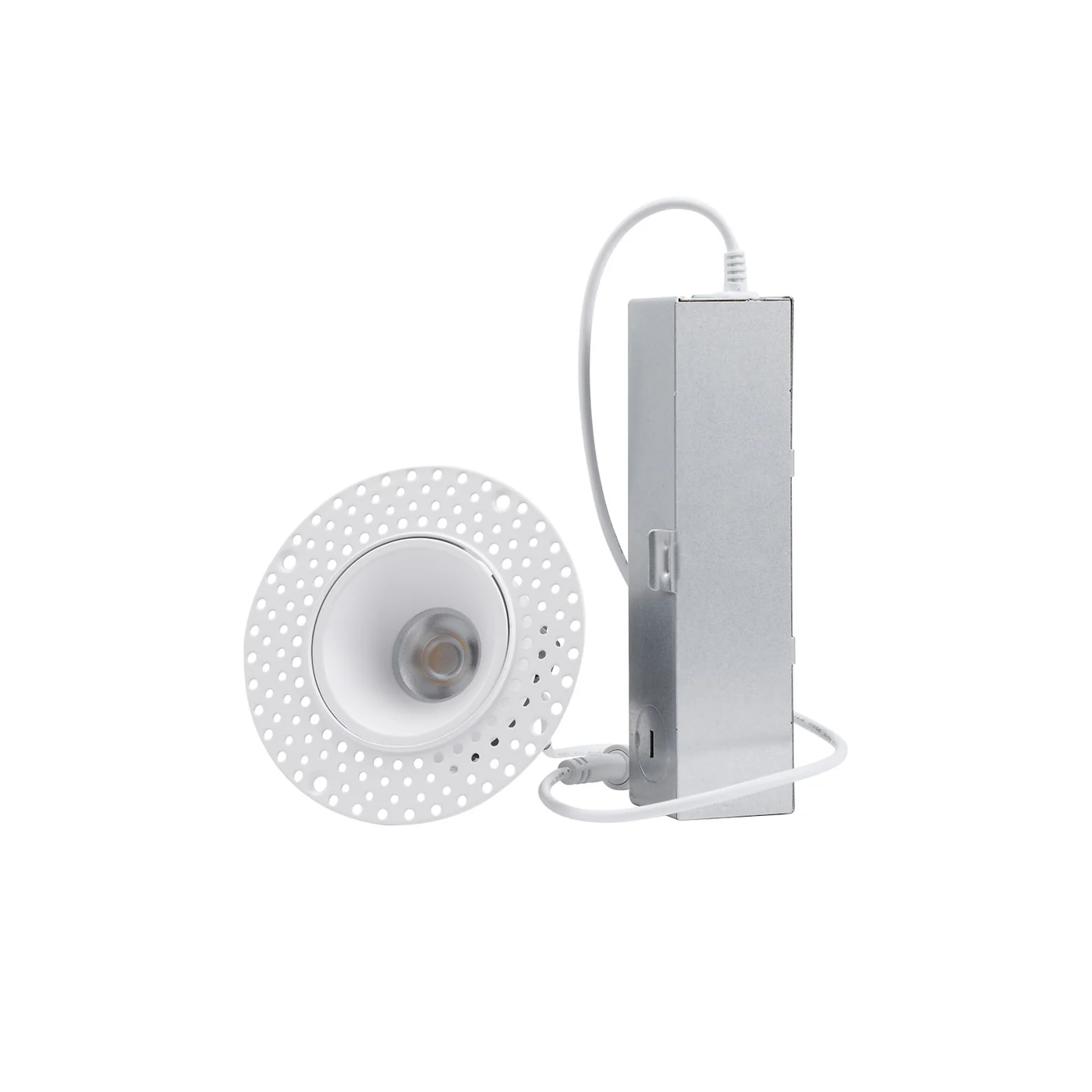

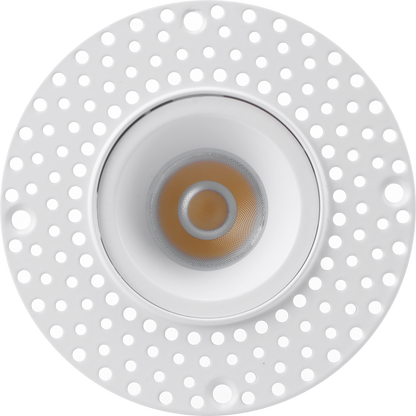

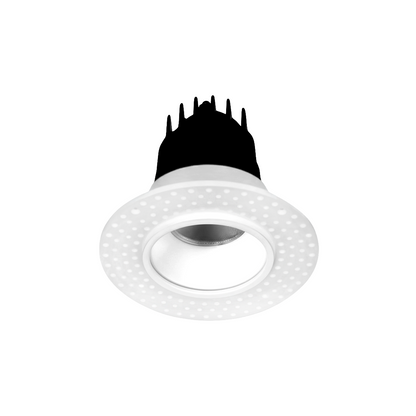

1"/2"/3" 5CCT Trimless Dimmable LED Recessed Downlight

This trimless COB LED recessed downlight installs seamlessly for a modern, minimalist look. Featuring deep-set chips for glare-free lighting, 5 selectable color temperatures, and CRI90 for vivid rendering, it delivers 600lm to 1150lm across multiple sizes with smooth dimming and long-lasting energy-efficient performance.

Nominal Size
Nominal Size: 1 in

$64.99

Pickup available at LeonLite Fulfillment Center

Usually ready in 2 hours
Finish your project
Need advice? Consult a Lighting Expert.

Email us
We'll reply in 24-48 hours. sales@leonlite.com

Call us
Mon-Fri : 8AM-4PM 800-990-7688

Specifications

Lumens 600 Lumens
Color Temperature 2700K/3000K/3500K/4000K/5000K
CRI 90+
Beam Angle 40 Degree
Wattage 9W
Voltage 120V
Waterproof Rating Wet
Operating Temp 5°F to 104°F
Lifespan 50000 Hrs
Light Source LED
Finish White
Material Aluminum
Documentation

z1683 User Manual(PDF)

z1683 Specification Sheet(PDF)



z1684 User Manual(PDF)

z1684 Specification Sheet(PDF)



z1685 User Manual(PDF)

z1685 Specification Sheet(PDF)

Certifications

  • FCC Listed

Trimless™

1"/2"/3" 5CCT Trimless Dimmable LED Recessed Downlight

This trimless COB LED recessed downlight installs seamlessly for a modern, minimalist look. Featuring deep-set chips for glare-free lighting, 5 selectable color temperatures, and CRI90 for vivid rendering, it delivers 600lm to 1150lm across multiple sizes with smooth dimming and long-lasting energy-efficient performance.

FAQs

Please read our FAQs page to find out more.

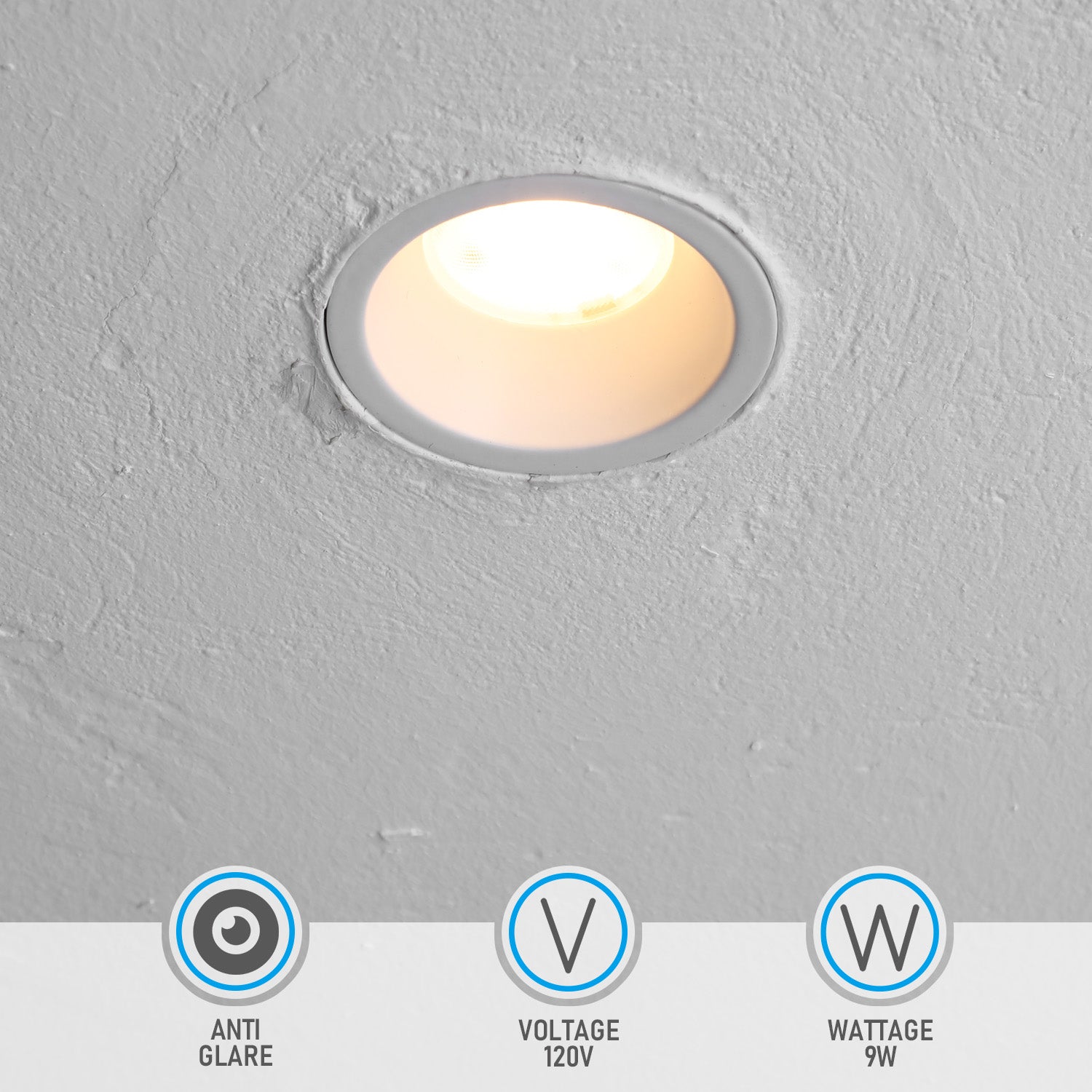

My ceiling is a bit dated and I’m planning to repaint soon. Will this trimless downlight blend into the ceiling once installed?

Yes. The trimless ring is screwed in, then skim-coated, sanded, and painted so only the aperture remains—creating a seamless, flush look that matches your new finish. Prep the surface and protect the opening during plastering/painting, and keep the J-box accessible per code.

After plastering over the ring, how do I service or replace the light? Is it “sealed in”?

No. The ring stays in place, while the light module is serviceable through the aperture. Electrical connections sit in the J-box above; keep it accessible per code. During finishing, protect the opening so compound/paint doesn’t enter the cavity.

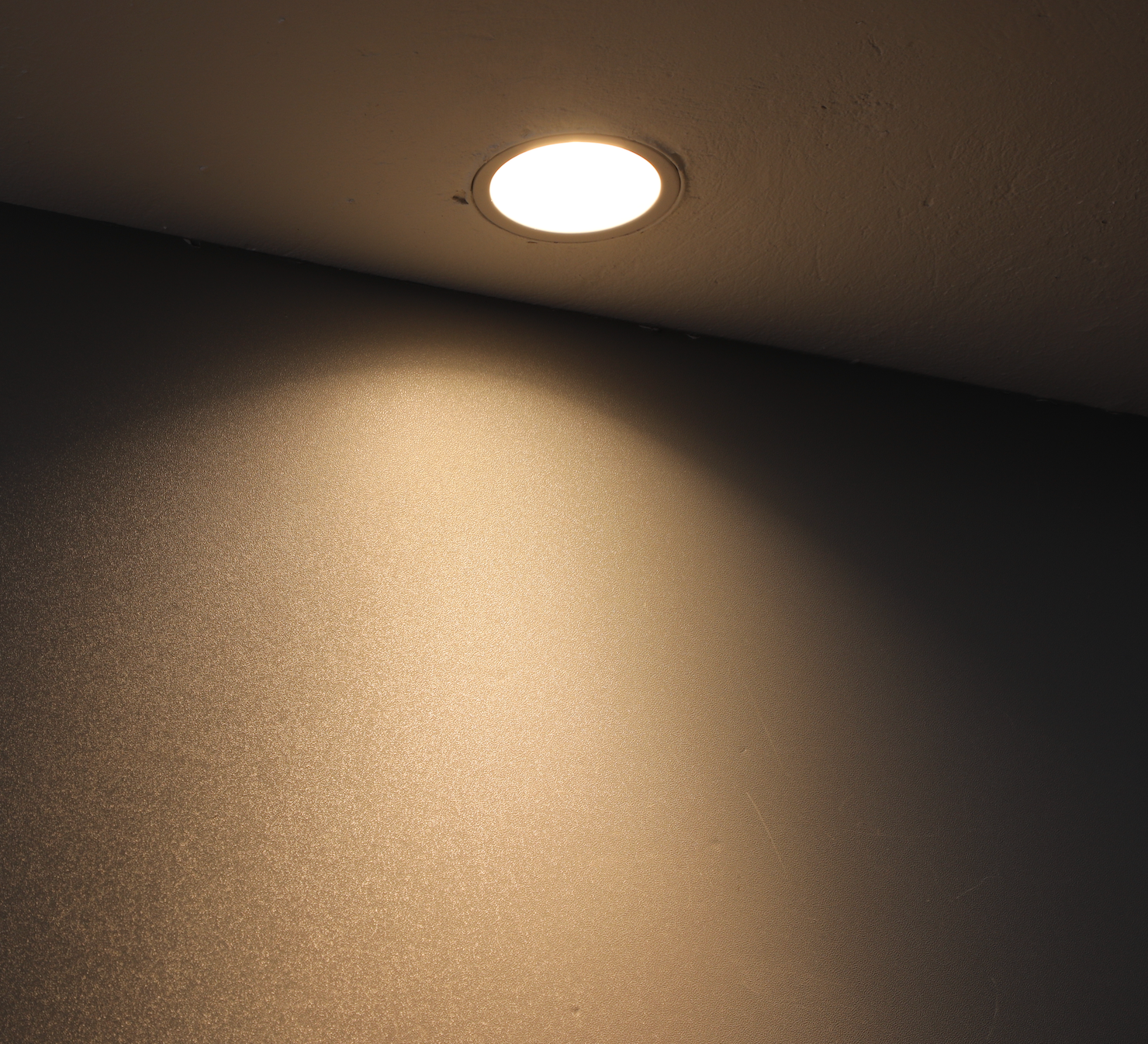

With glare control, will it feel dim? Is it suitable over dining tables, countertops, or reading nooks?

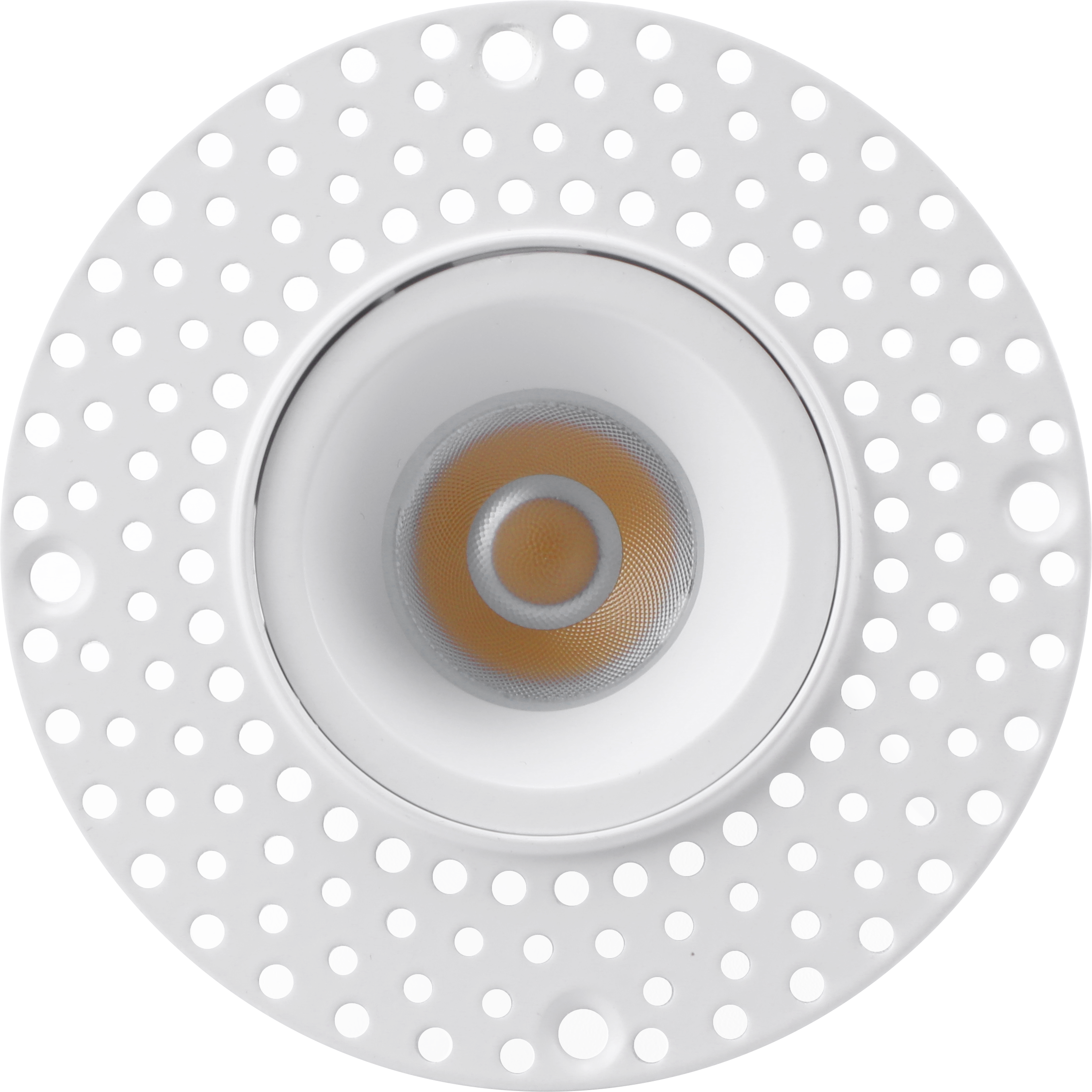

The deep-set optic hides the LED to cut direct and reflected glare, so it’s softer on the eyes while keeping usable light on your surfaces. With CRI 90+, finishes and food look accurate. It’s ideal over tables, islands, and reading spots—clear but comfortable.

Can I use it in bathrooms or damp/wet areas? Anything I should know about codes and certifications?

Yes—rated for wet locations. It’s ETL / ES / FCC / T24 (5000K excluded) certified. For code compliance (e.g., JA8), choose the labeled CCT options and follow local wiring and moisture-protection practices.
