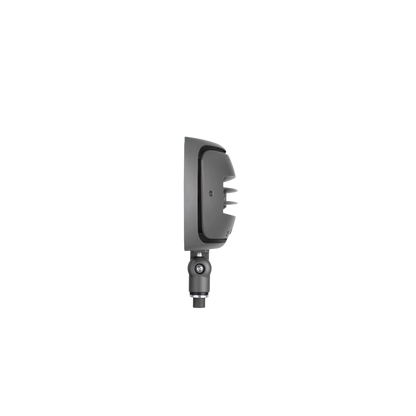

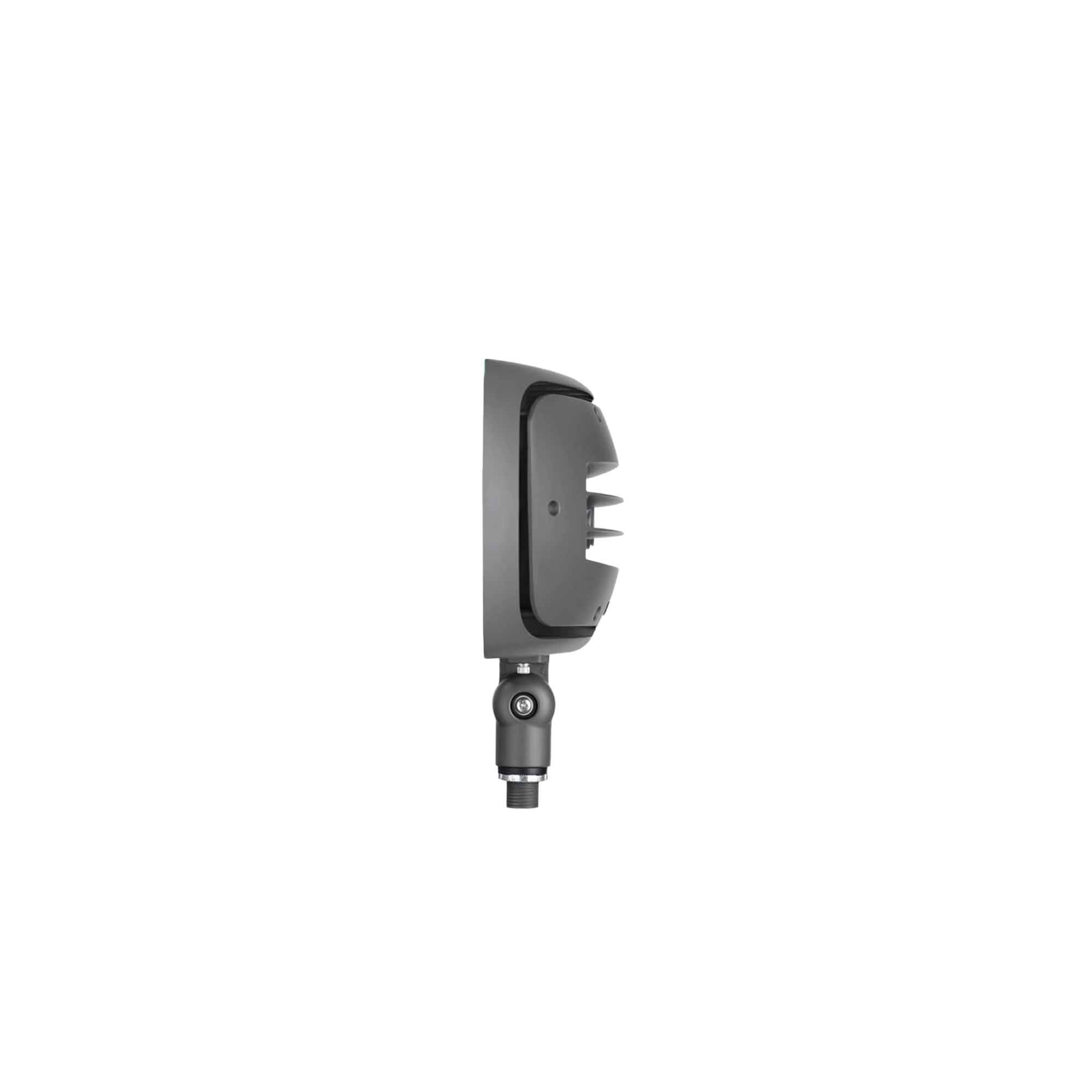

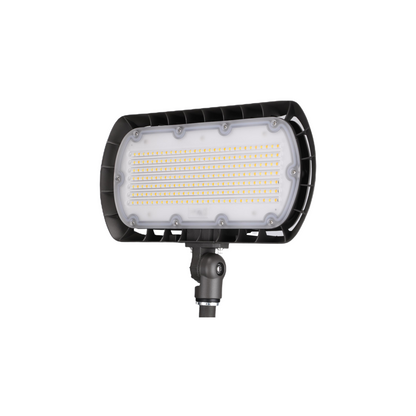

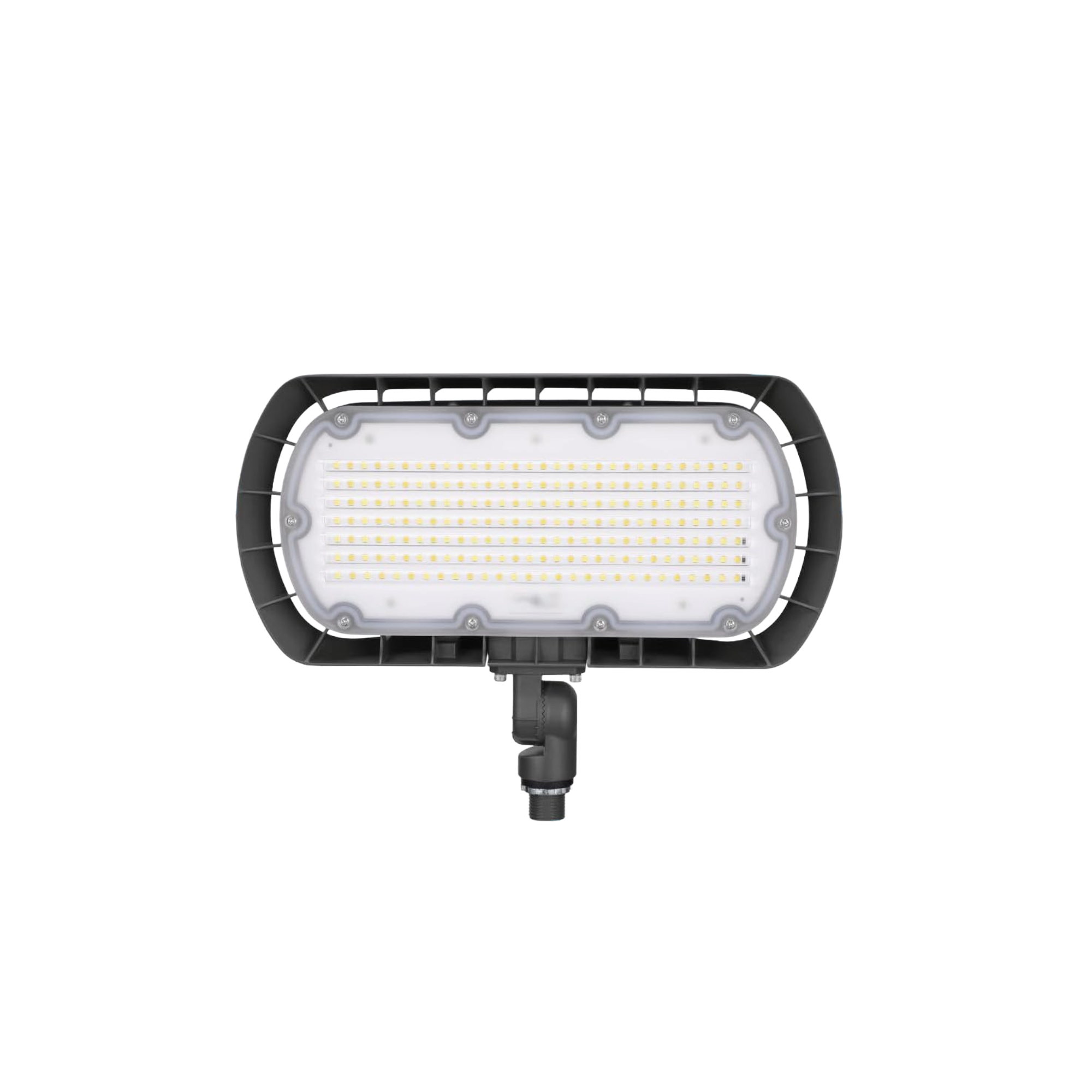

FloodLight™ Arc

FloodLight™ Arc

Product Highlights

1000+

Lumens

120 - 277V

Voltage

5 years

Warranty

50,000hrs

Warranty
In stock, ready to ship

z1757

FloodLight™ Arc

3CCT,90W. Ideal for large-scale outdoor spaces, building façades, gates, and security zones, this series combines power and intelligence to deliver professional-grade illumination with precision control.

$84.99
Shipping calculated at checkout.
Finish your project
Need advice? Consult a Lighting Expert.

Email us
We'll reply in 24-48 hours. sales@leonlite.com

Call us
Mon-Fri : 8AM-4PM 800-990-7688

Product Highlights

1000+

Lumens

120 - 277V

Voltage

5 years

Warranty

50,000hrs

Warranty

Specifications

Lumens 10800/8400/6000 Lumens
Color Temperature 3000K/4000K/5000K
CRI 80+
Beam Angle 130 Degree
Wattage 90/70/50 W
Voltage 120–277 V
Waterproof Rating IP65
Operating Temp -40°F–113°F
Lifespan 50000 Hrs
Light Source LED
Finish Dark Gray
Material Die-cast Aluminum
Documentation

User Manual(PDF)

Certifications
Load video:

FloodLight™ Arc

3CCT,90W. Ideal for large-scale outdoor spaces, building façades, gates, and security zones, this series combines power and intelligence to deliver professional-grade illumination with precision control.

FAQs

Please read our FAQs page to find out more.

Our façade has warm stone and cool metal—can I tune CCT on-site so both materials read correctly at night?

Yes. Select 3000K/4000K/5000K during install to match material tone.

I’m not sure how bright we need—can I start at 90W and step down later without changing fixtures?

Yes. Internal power selects 50/70/90W; fine-tune with 0–10V after aiming.

We run 0–10V controls on site—any special driver requirements, or will this tie into our existing low-voltage dim loops?

It natively supports 0–10V (10–100%); wire purple/pink leads to your dim loop per code.

We’re in a cold, windy lot—will this start reliably in winter and survive rain/dust?

Yes. −40~+45℃, IP65 housing, die-cast aluminum with PC lens.
